Outdoor Wireless Contact Sensor - Black
BRAND
2GIG
SES #
2GG DW30
MFG #
2GIG-DW30-345
UPC
817082013282
Your Price
Usually ships between 3-7 business days

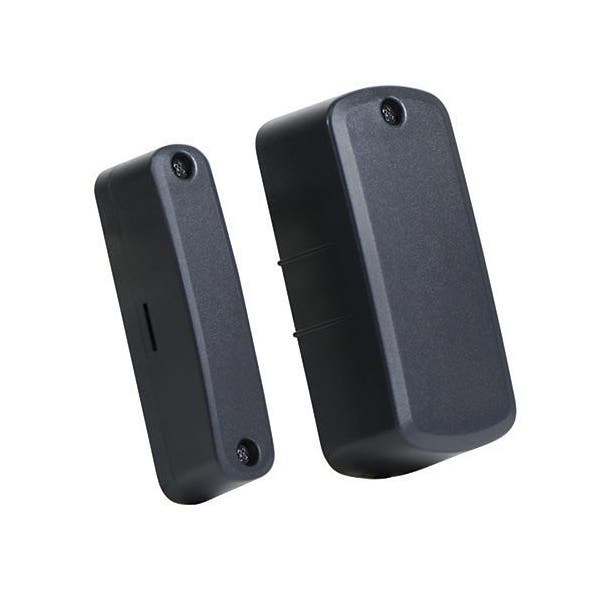

The 2GIG Outdoor Wireless Contact Sensor expands the reach of security systems to outdoor areas, providing timely notification when outdoor gates or doors are opened. Able to handle harsh temperature conditions, this sensor is ideal for wide gaps when a typical contact sensor is insufficient. The 2GIG Outdoor Wireless Contact Sensor will ship with a 2-year limited warranty.
- Sends a notification to the alarm panel when a door, gate or window is opened or closed.
- Enables two unique zones. One is for an internal magnetic reed switch while the second is for a normally-closed circuit that can have external devices wired to it.
- Can be painted to match its mounting surface.
- Sensor Dimensions: 4.6 x 2.1 x 1.5 inch
- Magnet Dimensions: 4.1 x 1.0 x 1.1 inch
- Battery life: Up to 5 years
- Wireless Signal Range: 350 ft (106.7m), open air with Wireless Control Panel
- Transmission Frequency: 345 MHz
Ordering Part Number
2GIG-DW30-345
Wireless Signal Range
350 ft (106.7m), open air with Wireless Control Panel
Transmitter Frequency
345 MHz
Compatibility
2GIG
Supervisory Interval
70 minutes
Sensor Dimensions (L x W x H)
4.6 x 2.1 x 1.5 inch (116 x 54 x 39 mm)
Magnet Dimensions (L x W x H)
4.1 x 1.0 x 1.1 inch (103 x 25 x 28 mm)
Magnet Type
Rare Earth
Magnet Gap
Up to 2 in
Material
Paintable ABS
External Input
Accepts N/C dry contact devices
Operating Temperature
-40° to 150°F (-40° to 66°C)
Operating Rel. Humidity
0 to 100%, non-condensing
IP Rating
Tested to IP56
Projected Battery Life
5 years
Warranty
2 years
