IP Video Master Station with 7" Touchscreen and Handset - White - TAA
BRAND
Aiphone
SES #
AIP IX-MV7-HW-JP
MFG #
IX-MV7-HW-JP
UPC
790143057480
Your Price
Usually ships between 3-7 business days

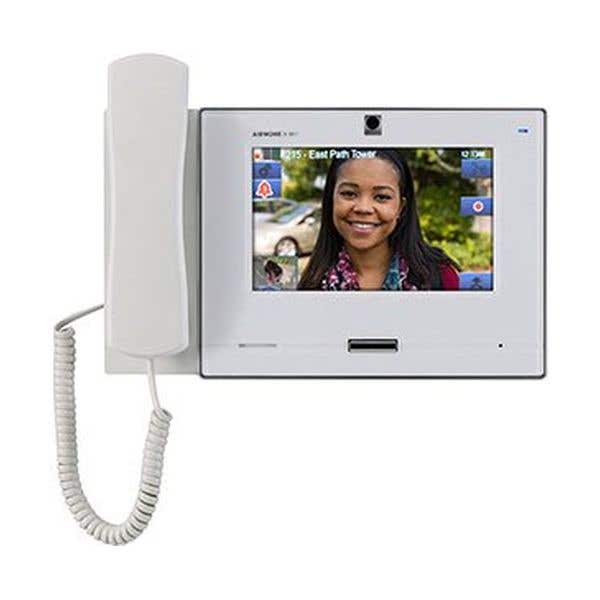

The IX-MV7-HW-JP is an IP addressable hands-free or handset master station with a 7" color touchscreen. It can be wall or desk mounted (desk stand included).
- SIP 2.0 Compliant allowing integration with Cisco Unified Call Manager®.
- ONVIF® Profile S Compliant
- 802.3af PoE, Class 0
- 7″ TFT LCD touchscreen
- Use built-in cameras for two-way master-to-master video conferencing (w/ privacy shutter)
- Hands-free or push-to-talk communication
- 8 customizable speed dial buttons
- Turn your master into a virtual receptionist – ideal for unmanned waiting areas or unstaffed lunch hours
- Capture and store the audio and video of active conversations on a microSD™ card (not provided by Aiphone)
- Picture-in-Picture (PIP) allows an ONVIF Profile S IP camera and an Aiphone video intercom to be viewed simultaneously
- 2 contact outputs, 4 trigger inputs
- 8Ω 1/2 watt speaker output provides better coverage for announcements
- 600Ω audio input
- 2-year warranty!
- Manufactured in a TAA compliant country
Power Source
PoE (IEEE 802.3af class 0)
Power Draw
4.32 Watts
Camera
⅓" CMOS 720p
Min. illumination
5 Lux
Audio Codec
G.711 (μ-law, A law), G.722
Video Codec
H.264/AVC, Motion JPEG
Protocols
IPv4, IPv6, TCP, UDP, SIP, HTTP, HTTPS, RTSP, RTP, RTCP, IGMP, MLD, SMTP, FTP, DHCP, NTP, DNS
Port Security
IEEE 802.1X
Operating Temp
32° - 104°F (0° - 40°C)
Dimensions
8-1⁄16" H x 11" W x 2-3⁄16" D
Mounting
Multi-angled desk stand (30°, 45°, 60°), or wall mount with included bracket.
