UL Power Supply 12VDC 750MA In Cabinet
BRAND
Altronix
MFG #
AL100UL
SES #
ALT AL100UL
UPC
782239930043
Your Price
Usually ships between 3-7 business days

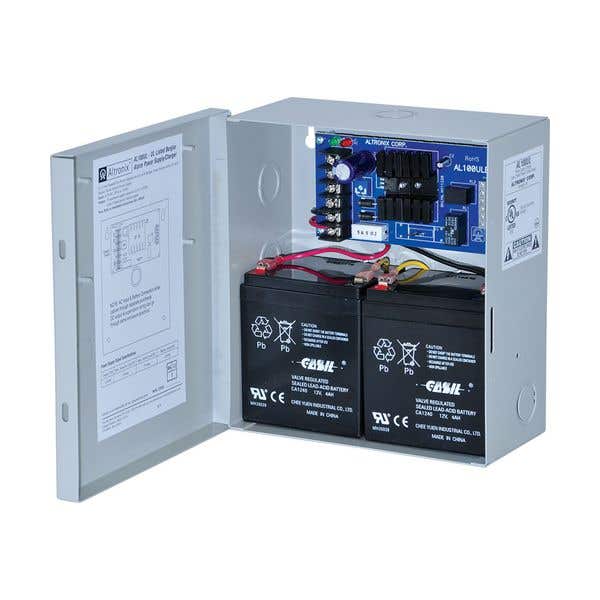

Altronix AL100UL linear power supply/charger converts a low voltage input into a 12VDC output.
- Input
- 16.5VAC, 20VA from UL Listed, Class 2 transformer (sold separately).
- Output
- 12VDC output.
- 750mA supply current.
- Class 2 Rated power limited output.
- Filtered and electronically regulated output.
- Short circuit and thermal overload protection.
- Battery Backup
- Built-in charger for sealed lead acid or gel type batteries.
- Automatic switch over to stand-by battery when AC fails.
- Low battery disconnect prevents batteries from deep discharge.
- Supervision
- AC fail supervision (form "C" contacts).
- Low battery supervision (form "C" contacts).
- Visual Indicators
- AC input and DC output LED indicators.
- Temperature
- Operating 0 to 49° C (32 to 120° F )
- Storage - 20 to 70° C ( -4 to 158° F)
- Relative Humidity 85% +/- 5%
- BTU/Hr. (approx.): 5 BTU/Hr.
- System AC input VA requirement: 26.45VA.
