24VDC 10 AMP Power Supply
BRAND
Altronix
SES #
ALT AL1024ULX
MFG #
AL1024ULX
UPC
782239936144
Your Price
Usually ships between 3-7 business days

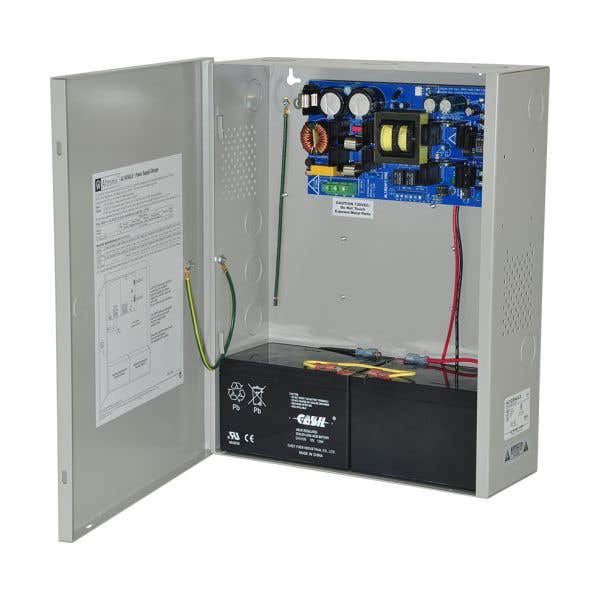

AL1024ULX is a power supply/charger that converts a 115VAC, 60Hz input into a single 24VDC non-power limited output.
- Input
- Input 115VAC, 60Hz, 4.2A.
- Input fuse rated @ 3.5A/250V.
- Output
- 24VDC output.
- 10A of continuous supply current for Access Control applications.
- 8A of continuous supply current for Fire Alarm applications.
- Filtered and electronically regulated output.
- Short circuit and thermal overload protection.
- Battery Backup
- Built-in charger for sealed lead acid or gel type batteries.
- Automatic switch over to stand-by battery when AC fails.
- Supervision
- AC fail supervision (form "C" contacts).
- Notification trigger is selectable for 30 seconds (factory set) or 6 hours.
- Low battery supervision (form "C" contacts).
- Battery presence supervision (form "C" contacts).
- Visual Indicators
- AC input and DC output LED indicators.
- Temperature
- Operating 0 to 49° C (32 to 120° F ).
- Storage - 20 to 70° C ( - 4 to 158° F).
- Relative Humidity 85% +/- 5%
- BTU/Hr. (approx.): 123 BTU/Hr.
- System AC input VA requirement: 483VA.
