PS 2.5AMP 12VDC/24VDC Fits 2 12VDC/7AH Batteries
BRAND
Altronix
MFG #
AL300ULX
SES #
ALT AL300ULX
UPC
782239931163
Your Price
Usually ships between 3-7 business days

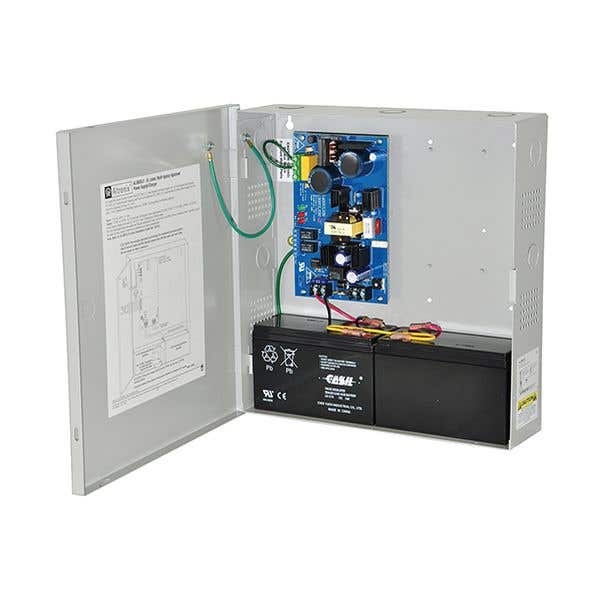

AL300ULX is a power supply/charger that converts a 115VAC/60Hz input into a single 12VDC or 24VDC Class 2 Rated power limited output.
- Input
- Input 115VAC, 60Hz, 3.5A.
- Input fuse rated @ 3.5A/250V.
- Output
- 12VDC or 24VDC selectable output.
- Burglar Alarm Applications (UL 603):
- 12VDC = 10VDC-13.2VDC.
- 24VDC = 20VDC-26.4VDC.
- 2.5A total supply current.
- Filtered and electronically regulated output.
- Short circuit and thermal overload protection.
- Battery Backup
- Built-in charger for sealed lead acid or gel type batteries.
- Automatic switch over to stand-by battery when AC fails.
- Supervision
- AC fail supervision (form "C" contacts).
- Notification trigger is selectable for 30 seconds (factory set) or 6 hours.
- Low battery supervision (form "C" contacts).
- Battery presence supervision (form "C" contacts).
- Visual Indicators
- AC input, DC output and Battery LED indicators.
- Temperature
- Operating 0° C to 49° C (32° F to 120° F).
- Storage - 20° C to 70°C ( - 4° F to 158° F).
- Relative Humidity 85% +/- 5%.
- BTU/Hr (approx.):
- 12VDC: 15 BTU/Hr.
- 24VDC: 31 BTU/Hr.
- System AC input VA requirement: 402.5VA.
