12/24VDC 6A 115AC IN Power Supply
BRAND
Altronix
MFG #
AL600ULXB
SES #
ALT AL600ULXB
UPC
782239932542
Your Price
Usually ships between 3-7 business days

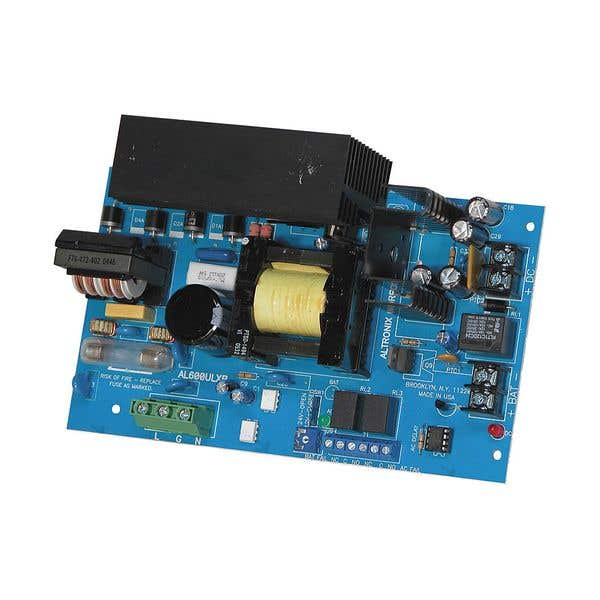

AL600ULXB is a UL Recognized power supply/charger that converts a 115VAC, 60Hz input into a single 12VDC or 24VDC non power-limited output.
- Input
- Input 115VAC, 60Hz, 3.5A.
- Output
- 12VDC or 24VDC selectable output.
- 6A continuous supply current.
- Filtered and electronically regulated output.
- Short circuit and thermal overload protection.
- Battery Backup
- Built-in charger for sealed lead acid or gel type batteries.
- Automatic switch over to stand-by battery when AC fails.
- Supervision
- AC fail supervision (form "C" contacts).
- Notification trigger is selectable for 30 seconds (factory set) or 6 hours.
- Low battery supervision (form "C" contacts).
- Battery presence supervision (form "C" contacts).
- Visual Indicators
- AC input and DC output LED indicators.
- Electrical
- Temperature:
- Operating: 0° C to 49° C (32° F to 120° F).
- Storage: - 20° C to 70° C ( - 4° F to 158° F).
- Relative Humidity 85% +/- 5%.
- BTU/Hr (approx.):
- 12VDC: 37 BTU/Hr.
- 24VDC: 74 BTU/Hr.
- System AC input VA requirement: 402.5VA.
- Temperature:
