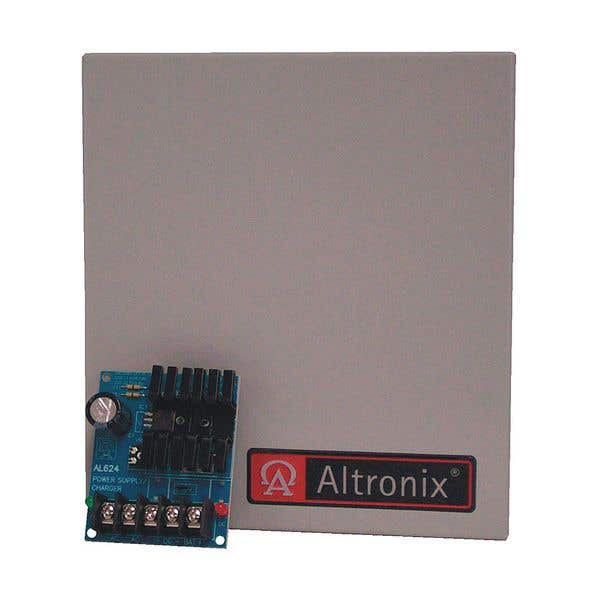

AL624 Power Supply in Cabinet
BRAND
Altronix
MFG #
AL624E
SES #
ALT AL624E
UPC
782239932627
Your Price
Usually ships between 3-7 business days
Altronix AL624E power supply/charger converts a low voltage AC input into 6VDC, 12VDC or 24VDC output. This general purpose power supply has a wide range of applications for access control, security and CCTV system accessories that require additional power.
- Input
- 16VAC to 24VAC, 20VA to 40VA.
- Output
- Switch selectable 6VDC-12VDC-24VDC.
- 6VDC or 12VDC @ 1.2A supply current or 24VDC @ 0.75A supply current.
- Filtered and electronically regulated output.
- Short circuit and thermal overload protection.
- Battery Backup
- Built-in charger for sealed lead acid or gel type batteries.
- Automatic switch over to stand-by battery when AC fails.
- PTC battery protection.
- Visual Indicators
- AC input and DC output LED indicators.
- Features
- Power supply/charger with enclosure.
- Fits one (1) 12VDC/7AH or two (2) 12VDC/4AH batteries.
- Temperature
- Operating 0°C to 49°C (32°F to 120°F).
- Storage - 20°C to 70°C ( - 4°F to 158°F).
- Relative Humidity 85% +/- 5%.
- BTU/Hr. (approx.):
- 6VDC: 4 BTU/Hr.
- 12VDC: 7 BTU/Hr.
- 24VDC: 9 BTU/Hr.
- System AC input VA requirement:
- 16.5VAC/20VA: 138.
- 16.5VAC/40VA: 276.
- 24VAC/20VA: 92.
- 24VAC/40VA: 192.05.
