12 OR 24VDC 6AMP Power Supply 16 Fused Outputs
BRAND
Altronix
MFG #
ALTV1224DC2
SES #
ALT ALTV1224DC2
UPC
782239930807
Your Price
Usually ships between 3-7 business days

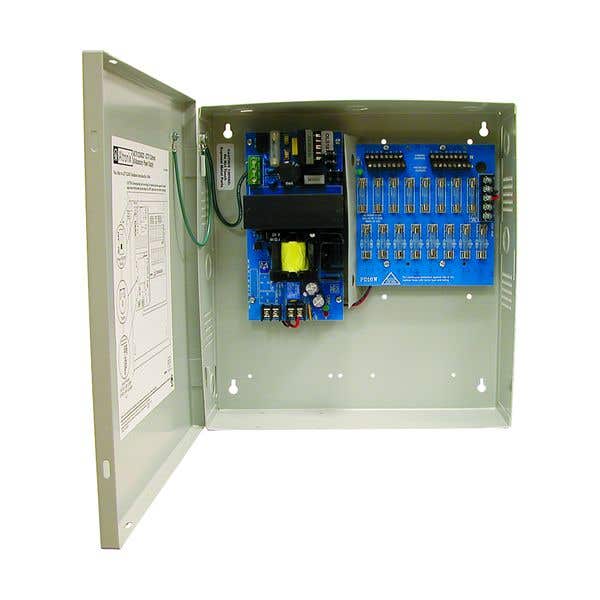

ALTV1224DC2 is designed to power CCTV Cameras and accessories. It will provide 12VDC or 24VDC distributed via sixteen (16) fuse protected outputs with a total of 6A total supply current.
- Input
- Input 115VAC, 50/60 Hz, 2.55A.
- Output
- Sixteen (16) fuse protected outputs.
- 12VDC or 24VDC.
- 6A total continuous supply current (0.375A per device, 3.5A max.).
- Outputs are rated @ 3.5A.
- Filtered and electronically regulated outputs.
- Electrical
- Temperature:
- Operating: 0° C to 49° C (32° F to 120° F).
- Storage: - 20° C to 70° C ( - 4° F to 158° F).
- Relative Humidity 85% +/- 5%.
- BTU/Hr (approx.):
- 12VDC: 37 BTU/Hr.
- 24VDC: 75 BTU/Hr.
- System AC input VA requirement: 293.25VA.
- Temperature:
- Features
- AC input and DC output LED indicators.
- Power ON/OFF switch.
- Unit maintains camera synchronization.
- Ease of installation saves time and eliminates costly labor.
