Single Port Midspan PoE Injector
BRAND
Altronix
MFG #
NETWAY1
SES #
ALT NETWAY1
UPC
782239946235
Your Price
Usually ships between 3-7 business days

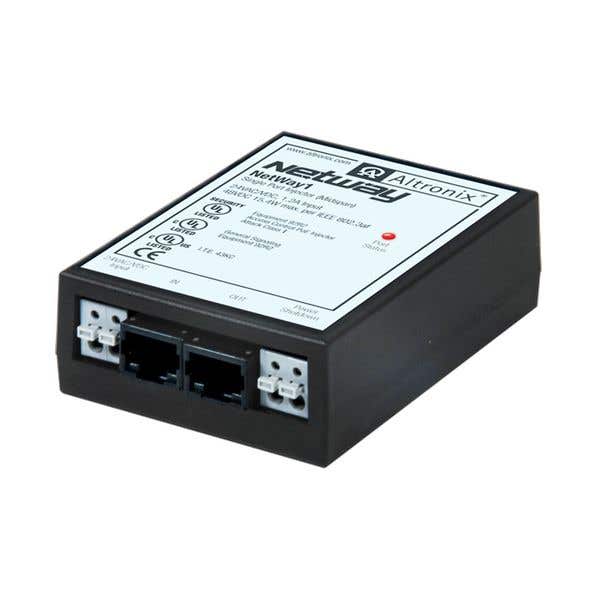

Altronix NetWay1 single port midspan PoE-compliant power injector provides power and passes data (e.g. video) for PoE-compliant devices. Devices may be located up to 100m from NetWay1. A NetWayXT repeater module can be utilized to extend the distance for an additional 100m for a total range of up to 200m. A maximum range of 600m is possible using multiple repeaters, based on device port requirement. NetWay1 is capable of supporting non-_x005F_x000D_PoE compliant fixed IP cameras by utilizing NetWay1512 adapter.
- Input
- 24VAC @ 1.2A or 24VDC @ 1.2A.
- Data
- One (1) PoE port provides power and passes data over ethernet (CAT5) cable up to 100m.
- Data rate: 10/100 Base-T compliant.
- Output Power
- Port provides up to 15.4W max.
- IEEE 802.3af compliant.
- 48VDC.
- Short circuit protection.
- Functions
- Port status LED.
- PoE manual shutdown (For UL 60950-1 applications only).
- Auto detection and protection of legacy non-PoE cameras/devices.
- Temperature
- Operating: 0° C to 49° C (32° F to 120° F).
- Storage: - 20° C to 70° C ( - 4° F to 158° F).
- Operating Altitude
- - 304.8 to 3,048m ( - 1000 to 10,000 ft.).
