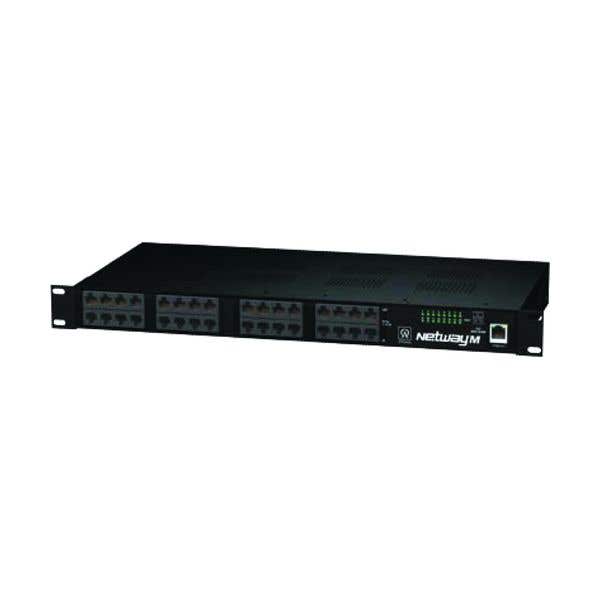

16 Port Managed Midspan PoE Injector
BRAND
Altronix
MFG #
NETWAY16M
SES #
ALT NETWAY16M
UPC
782239949069
Your Price
Usually ships between 3-7 business days
Altronix NetWay16M Managed Midspans provide power and pass data for PoE compliant cameras/edge devices. Cameras/edge devices may be located up to 100m from the NetWay unit. A NetWayXT repeater module can be utilized to extend the distance an additional 100m for a total range of up to 200m. A maximum range of 600m is possible using multiple repeaters, based on camera/device port requirement. NetWay Managed Midspans are capable of supporting non-PoE compliant fixed and PTZ IP cameras utilizing NetWay1512 or NetWay3012 adapters.
- Input
- 115VAC 60Hz, 4.9A.
- Power
- Sixteen (16) ports of cameras/edge devices over ethernet (CAT5) cable up to a distance of 100m per port.
- Unit provides up to 30W max. full power per port.
- Total power: 300W.
- IEEE 802.3af (PoE) and IEEE 802.3at (PoE +) compliant.
- Short circuit protection.
- Functions
- Programmable PoE shutdown for each port. Utilized to reset cameras/edge devices.
- Auto detection and protection of legacy non-PoE cameras/edge devices.
- Features
- LAN or laptop connection enables programming of PoE shutdown and port monitoring.
- User interface.
- Illuminated master power disconnect circuit breaker with manual reset (switch).
- Individual port status LEDs.
- IEC 320 - 3-wire grounded line cord (detachable).
- Temperature
- Operating:
- UL60950-1: - 20° C to 40° C (-4° F to 104° F).
- UL294: - 20° C to 49° C (-4° F to 120.2° F).
- Storage: - 20° C to 70° C (-4° F to 158° F).
- Relative Humidity 85% +/- 5%.
- BTU/Hr. (approx.): 154 BTU/Hr.
- System AC input VA requirement: 563.5VA.
- Operating:
- Operating Altitude
- - 304.8 to 3,048m ( - 1,000 to 10,000 ft.).
