Offline Switching Power Supply 12/24VDC 4 AMP
BRAND
Altronix
MFG #
OLS120
SES #
ALT OLS120
UPC
782239933488
Your Price
Usually ships between 3-7 business days

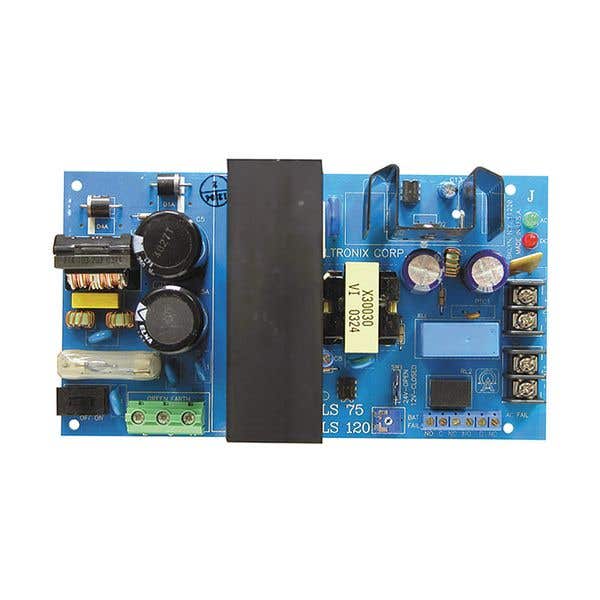

OLS120 power supply/charger converts a 115VAC, 50/60Hz or 230VAC, 50/60Hz input into a 12VDC or 24VDC output @ 4A continuous supply current (see specifications). This unit has a wide range of applications for access control and security system accessories that require additional power.
- Input
- Universal input 115VAC, 50/60Hz, 0.95A or 230VAC, 50/60Hz, 0.6A.
- Output
- 12VDC or 24VDC selectable output.
- 4A continuous supply current.
- Filtered and electronically regulated output.
- Short circuit and thermal overload protection.
- Battery Backup
- Built-in charger for sealed lead acid or gel type batteries.
- Automatic switch over to stand-by battery when AC fails.
- Supervision
- AC fail supervision (form "C" contacts).
- Low battery supervision (form "C" contacts).
- Visual Indicators
- AC input and DC output LED indicators.
- Features
- Power ON/OFF switch.
- Includes battery leads.
- Electrical
- Operating temperature: 0° C to 55° C (32° F to 131° F).
- Storage - 20° C to 70° C ( - 4° F to 158° F).
- Relative Humidity 85% +/- 5%.
- BTU/Hr (approx.):
- 12VDC: 25 BTU/Hr.
- 24VDC: 49 BTU/Hr.
- System AC input VA requirement:
- 115VAC: 109.25VA.
- 230VAC: 138VA.
