16Port Long Range Ethernet/PoE Extender Receiver
BRAND
Altronix
MFG #
PACE16PRM
SES #
ALT PACE16PRM
UPC
782239953202
Your Price
Usually ships between 3-7 business days

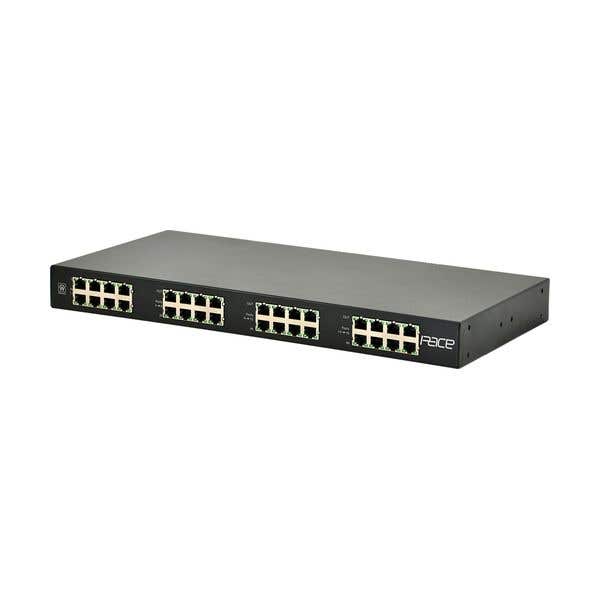

Pace16PRM are long range Ethernet receivers that transmit data at 100mbps full duplex and power via CAT5e or higher cable in a PoE(+) compliant format. The Pace16PRM receivers are powered via a PoE midspan such as the Altronix Netway series or by an endspan. The receiver passes the PoE(+) compliant power over the cable to the Pace1PTM transceiver which in turn passes this power to an enabled IP camera/device. These plug and play units facilitate cost effective solutions for IP devices that need to be installed at the distances greater than 100m. They also provide a simple way to replace legacy analog products with new IP devices over structured cable.
- Input
- Powered by midspan or endspan.
- PoE compliant to IEEE 802.3af (15W) and PoE+ compliant to IEEE 802.3at (30W).
- Ethernet
- Connectivity: RJ45, auto-crossover.
- Wire type: 4-pair CAT5e.
- Distance: up to 500m.
- Speed: 100BaseT, full duplex, auto negotiation. PoE compliant to IEEE 802.3af (15W) and PoE+ compliant to IEEE 802.3at (30W) delivered to camera by Pace1PTM. Power provided by Pace16PRM to Pace1PTM by PoE protocol.
- CAT5e or Higher
- Throughput is rated to pass 100mbps of data at distances up to 500m. With proper headend equipment this supports Megapixel, HD720, HD1080.
- Distance: up to 500m @ 100mbps.
- LED Indicators
- Yellow and Green LED (by RJ45 jack):
- IP Link status, 10/100Base-T/active.
- Yellow and Green LED (by RJ45 jack):
- Temperature
- Operating Temperature: -20°C to 49°C (-4°F to 120.2°F).
- Storage Temperature: -30°C to 70°C (-22°F to 158°F).
- Relative Humidity 85% +/- 5%.
- Operating Altitude
- - 304.8 to 2,000m.
