8 Output Power Distribution Module-PTC Protected
BRAND
Altronix
MFG #
PD8ULCB
SES #
ALT PD8ULCB
UPC
782239936205
Your Price
Usually ships between 3-7 business days

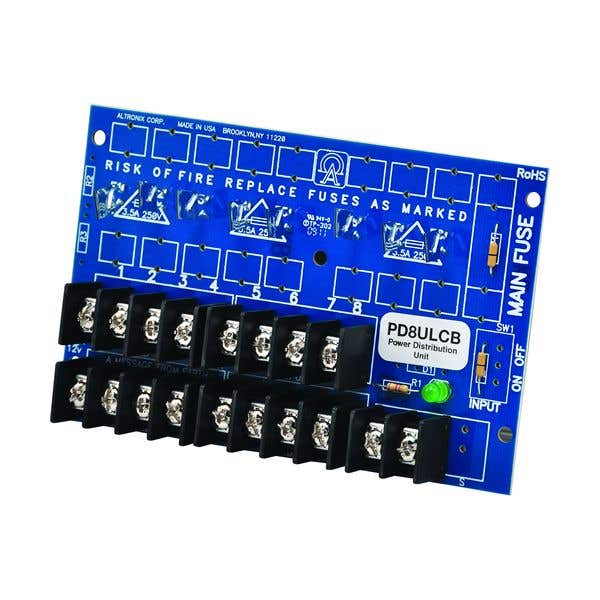

Altronix PD8ULCB UL Listed Sub-Assembly power distribution module is designed to convert a single AC or DC input into eight (8) PTC protected Class 2 Rated powerlimited outputs.
- Input
- 12VDC or 24VDC, up to 10A or 24VAC or 28VAC, up to 12A.
- Outputs
- Eight (8) individually PTC protected outputs @ 2A per output max. current (total output current should not exceed max. current rating of power supply employed).
- PTCs rated @ 2A/250V.
- Visual Indicators
- Power on green LED indicator.
- Electrical
- Operating temperature: 0 to 49° C (32 to 120° F).
- Storage - 20 to 70° C ( - 4 to 158° F).
- Relative Humidity 85% +/- 5%.
