8 Output Power Dist. Module 2 AC/DC Power Input
BRAND
Altronix
MFG #
PDS8
SES #
ALT PDS8
UPC
782239954858
Your Price
Usually ships between 3-7 business days

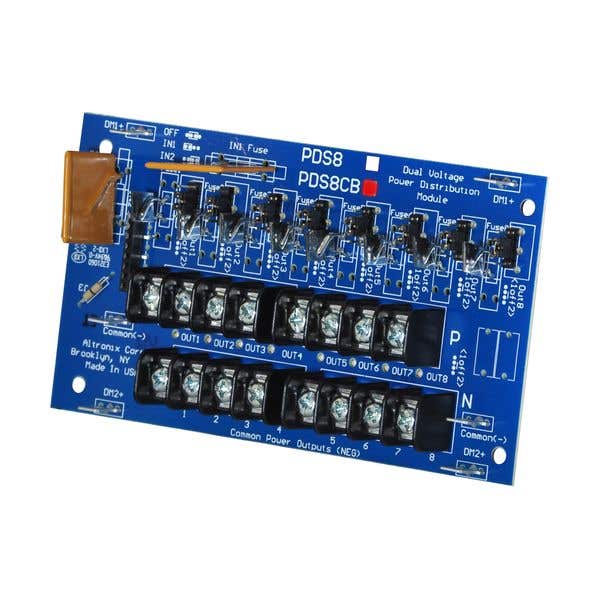

PDS8 dual input power distribution modules are designed to steer the power from either two (2) low voltage AC or DC power sources. This power is distributed over a total of eight (8) fused protected outputs.
- Power Inputs
- Input 1 and Input 2 Voltage range: 5VDC to 24VDC up to 10A each or 16VAC to 28VAC up to 14A each.
- Outputs
- Any of the eight (8) fuse protected power outputs are selectable to follow power input 1 or input 2.
- Individual outputs may be set to OFF position for servicing.
- Output ratings:
- PDS8 - fuse protected outputs rated @ 3A (total output current should not exceed max current rating of power supply employed).
- Surge suppression.
- Fuse Ratings
- Output fuses rated @ 3A each.
- Main input fuses rated @ 10A each.
- LED Indicators
- Eight (8) individual output LEDs.
- Temperature
- Operating: 0° C to 49° C (32° F to 120° F).
- Storage: - 20° C to 70° C ( - 4° F to 158° F).
- Relative Humidity 85% +/- 5%.
