7 Day/24 HR Event Timer/AC/DC
BRAND
Altronix
MFG #
PT724A
SES #
ALT PT724A
UPC
782239932351
Your Price
Usually ships between 3-7 business days

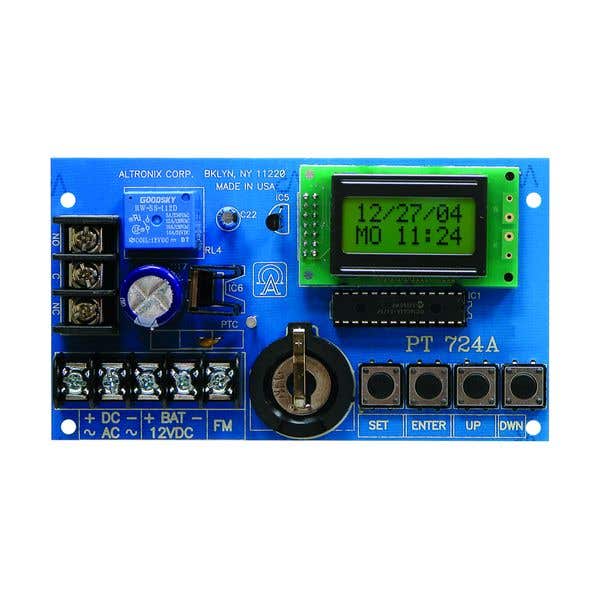

PT724A is an extremely versatile 24 Hour 365 Day Event Timers designed to support a wide range of applications: Home and Building Automation, Security, Access Control, Lighting Control, Etc.The PT724A are equipped with an independently controlled form "C" relay contact that provides many latching and/or momentary operations during a program schedule of your choice. Events may be set for single or multiple operations on a daily and/or weekly schedule.
- Input
- 12 to 24 volts AC or DC operation
- Relay
- Form "C" relay contacts are rated 10A @120VAC/28VDC.
- Standby current: 10mA (relay off) 50mA (relay on).
- Features
- EE Prom memory protects against loss of programming due to power failure.
- Accurate crystal controlled clock.
- Momentary and/or Latching Events.
- 50 individually programmed daily/weekly events.
- Block programming capacity can accommodate a total of 350 events per week.
- 10 programmable Holiday dates.
- "First man in" option.
- Standard or Daylight Savings Time settings.
- Automatic compensation for leap year.
- Visual Indicators
- Alphanumeric LCD display simplifies programming.
- Battery Backup
- Built-in charger for 12VDC sealed lead acid or gel type batteries(Max charge current 100mA).
- Optional lithium battery backup maintains clock.
- Order Altronix part # LB2032.
- Temperature
- Operating -20°C to 49°C ( -4°F to 120°F).
- Storage -25°C to 70°C ( -13°F to 158°F).
- Relative Humidity 85% +/- 5%.
