18Output CCTV 12VDC Pow Supply 5 AMP-PTC-EnclosureE-Line Cord
BRAND
Altronix
MFG #
SAV18D
SES #
ALT SAV18D
UPC
782239945290
Your Price
Usually ships between 3-7 business days

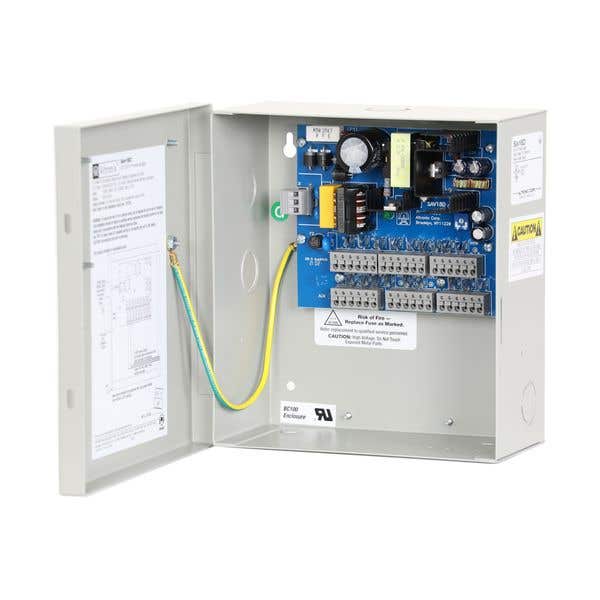

Sav18D Power Supply provides 12VDC distributed via eighteen (18) Class 2 Rated PTC protected power limited outputs for powering surveillance cameras.
- Input
- 115VAC60Hz, 1.5A / 230VAC 50Hz, 0.75A.
- Output
- 12VDC @ 5A total output current (0.27A per device, 2.5A max.).
- Eighteen (18) Class 2 Rated PTC protected power limited auto-resettable outputs.
- Filtered and electronically regulated outputs.
- Short circuit and thermal overload protection.
- Features
- Power LEDs.
- Field installable 3-wire line cord with integral strain relief.
- Unit maintains camera synchronization.
- Ease of installation saves time & eliminates costly labor.
- Temperature
- Operating 0° C to 49° C (32° F to 120° F).
- Storage - 20° C to 70°C ( - 4° F to 158° F).
- Relative Humidity 85% +/- 5%.
- BTU/Hr (approx.): 31 BTU/Hr.
- System AC input VA requirement: 172.5VA.
