8 Output Power Supply 12VDC @10AMP PTC Outputs
BRAND
Altronix
MFG #
SMP10PM12P8CB
SES #
ALT SMP10PM12P8CB
UPC
782239938360
Your Price
Usually ships between 3-7 business days

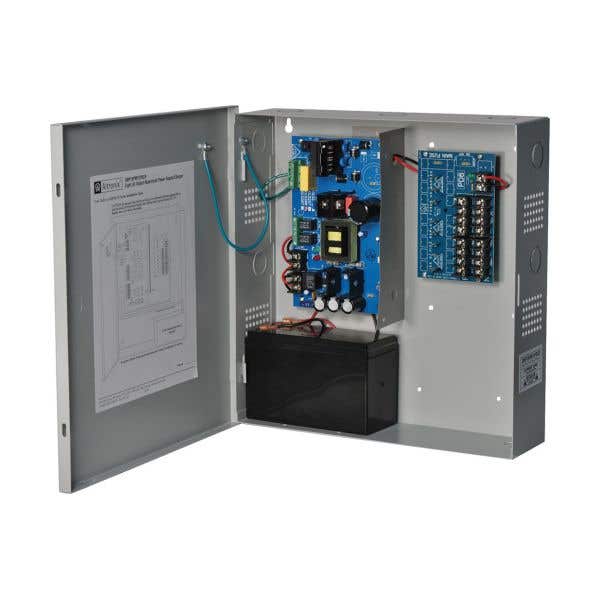

SMP10PM12P8CB is a multi-output power supply/charger that converts a 115VAC/60Hz input into eight (8) 12VDC outputs.
- Input
- Input 115VAC, 60Hz, 1.45A.
- Output
- 12VDC output.
- 10A supply current.
- Eight (8) PTC protected outputs (auto-resettable).
- Outputs are rated @ 2.5A.
- Filtered and electronically regulated outputs.
- Short circuit and thermal overload protection.
- Battery Backup
- Built-in charger for sealed lead acid or gel type batteries.
- Zero voltage drop when switching over to battery backup.
- Supervision
- AC fail supervision (form "C" contacts).
- Battery presence and low battery supervision (form "C" contacts).
- Visual Indicators
- AC input and DC output LED indicators.
- Temperature
- Operating: 0° C to 49° C (32° F to 120° F).
- Storage: - 20° C to 70° C ( - 4° F to 158° F).
- Relative Humidity 85% +/- 5%.
- BTU/Hr (approx.): 61 BTU/Hr.
- System AC input VA requirement: 166.75VA.
