4 Output PS/Charger- 24VDC@10A 115VAC Input
BRAND
Altronix
SES #
ALT SMP10PM24P4
MFG #
SMP10PM24P4
UPC
782239938933
Your Price
Usually ships between 3-7 business days

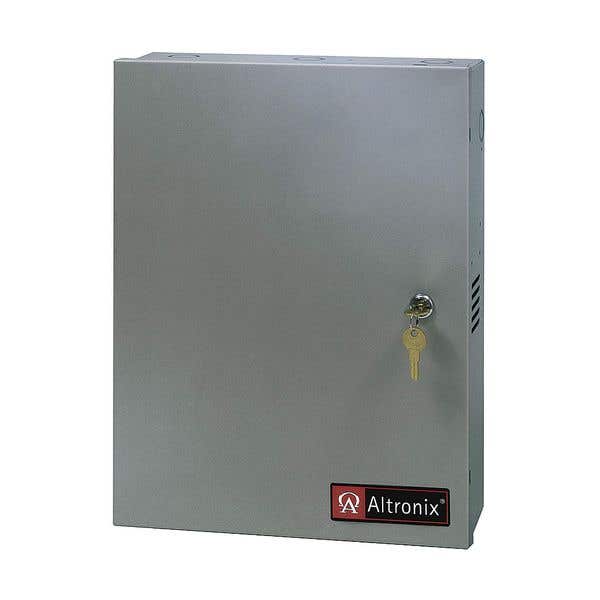

SMP10PM24P4 is a multi-output power supply/charger that converts a 115VAC/60Hz input into four (4) 24VDC outputs.
- Input
- Input 115VAC, 60Hz, 2.7A.
- Output
- 24VDC output.
- 10A supply current.
- Four (4) fuse protected outputs.
- Outputs are rated @ 3.5A.
- Filtered and electronically regulated outputs.
- Short circuit and thermal overload protection.
- Battery Backup
- Built-in charger for sealed lead acid or gel type batteries.
- Zero voltage drop when switching over to battery backup.
- Supervision
- AC fail supervision (form "C" contacts).
- Battery presence and low battery supervision (form "C" contacts).
- Visual Indicators
- AC input and DC output LED indicators.
- Temperature
- Operating: 0° C to 49° C (32° F to 120° F).
- Storage: - 20° C to 70° C ( - 4° F to 158° F).
- Relative Humidity 85% +/- 5%.
- BTU/Hr (approx.): 122 BTU/Hr.
- System AC input VA requirement: 310.5VA.
