Power Supply-12/24VDC @2.5A w/ Enclosure & Transformer
BRAND
Altronix
MFG #
SMP3ET
SES #
ALT SMP3ET
UPC
782239934591
Your Price
Usually ships between 3-7 business days

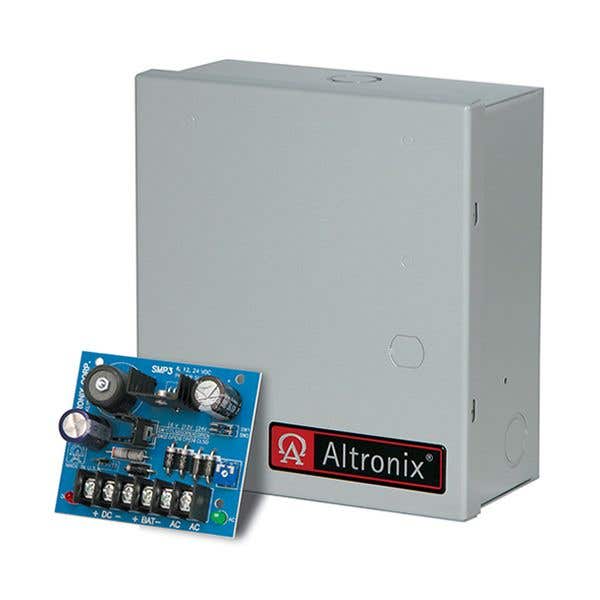

Altronix SMP3ET power supply/charger converts a low voltage AC input into a 6VDC or 12VDC output. This unit has a wide range of applications for access control, security and CCTV system accessories that require additional power.
- Input
- 16VDC from TP1640 plug-in transformer.
- Output
- 6VDC or 12VDC selectable output.
- 2.5A continuous supply current.
- Filtered and electronically regulated output.
- Short circuit and thermal overload protection.
- Battery Backup
- Built-in charger for sealed lead acid or gel type batteries.
- Automatic switch over to stand-by battery when AC fails.
- Battery short circuit protection (circuit breaker).
- Visual Indicators
- AC input and DC output LED indicators.
- Temperature
- Operating: 0° C to 49° C (32° F to 120° F).
- Storage: - 20° C to 70° C ( - 4° F to 158° F).
- Relative Humidity 85% +/- 5%.
- BTU/Hr. (approx.):
- 6VDC: 8 BTU/Hr.
- 12VDC: 15 BTU/Hr.
- System AC input VA requirement:
- 6VDC/12VDC: 276VA.
