Supervised Power Supply 12/24VDC
BRAND
Altronix
MFG #
SMP3PM
SES #
ALT SMP3PM
UPC
782239930449
Your Price
Usually ships between 3-7 business days

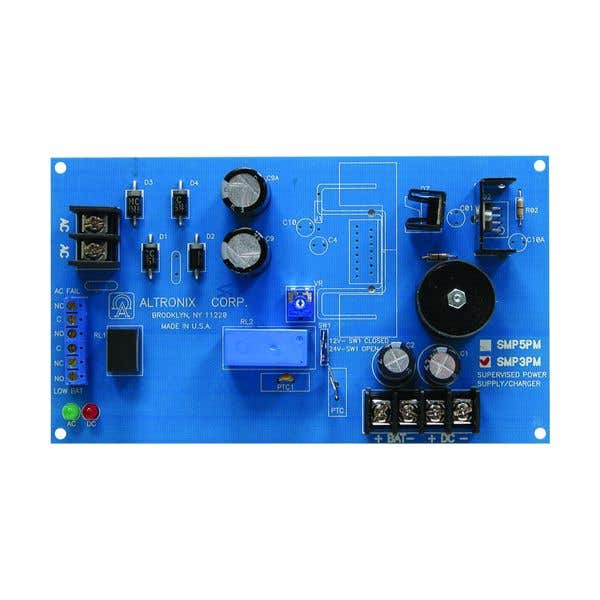

SMP3PM supervised power supply/charger converts a low voltage AC input into a 12VDC or 24VDC output. This unit has a wide range of applications for access control,security and CCTV system accessories that require additional power.
- Input
- 12VDC applications use TP1640, T2428100.
- 24VDC applications use T2428100.
- Output
- 12VDC or 24VDC selectable output.
- 2.5A continuous supply current.
- Filtered and electronically regulated output.
- Short circuit and thermal overload protection.
- Battery Backup
- Built-in charger for sealed lead acid or gel type batteries.
- Automatic switch over to stand-by battery when AC fails.
- Battery short circuit protection (circuit breaker).
- Supervision
- AC fail supervision (form "C" contacts).
- Low battery supervision (form "C" contacts).
- Visual Indicators
- AC input and DC output LED indicators.
- Electrical
- Temperature:
- Operating Temperature: 0° C to 49° C (32° F to 120° F).
- Storage Temperature: - 20° C to 70° C ( - 4° F to 158° F).
- Relative Humidity 85% +/- 5%.
- BTU/Hr (approx.):
- 12VDC: 15 BTU/Hr.
- 24VDC: 31 BTU/Hr.
- System AC input VA requirement:
- 12VDC: 55.2VA.
- 24VDC: 115VA.
- Temperature:
- Features
- Includes battery leads.
