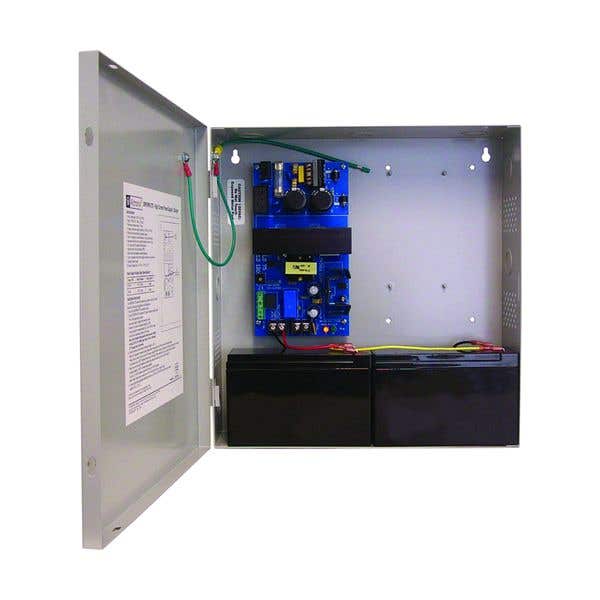

4AMP Power Supply Cabinet and Transformer
BRAND
Altronix
MFG #
SMP5PMCTX
SES #
ALT SMP5PMCTX
UPC
782239930500
Your Price
Usually ships between 3-7 business days
SMP5PMCTX supervised power supply/charger converts a 115VAC/230VAC, 50/60Hz input into a regulated 12VDC or 24VDC output @ 4A continuous supply current.
- Input
- Input 115VAC, 50/60Hz, 0.95A or 230VAC, 50/60Hz, 0.5A.
- Output
- 12VDC or 24VDC selectable output.
- 4A supply current.
- Filtered and electronically regulated outputs.
- Short circuit and thermal overload protection.
- Battery Backup
- Built-in charger for sealed lead acid or gel type batteries.
- Zero voltage drop when switching over to battery backup.
- Supervision
- AC fail supervision (form "C" contacts).
- Low battery supervision (form "C" contacts).
- Visual Indicators
- AC input and DC output LED indicators.
- Temperature
- Operating: 0° C to 49° C (32° F to 120° F).
- Storage: - 20° C to 70° C ( - 4° F to 158° F).
- Relative Humidity 85% +/- 5%.
- BTU/Hr. (approx.):
- 12VDC: 25 BTU/Hr.
- 24VDC: 49 BTU/Hr.
- System AC input VA requirement:
- 115VAC: 109.25VA.
- 230VAC: 115VA.
