5A Supervised Power Supply PD8CB Built-In
BRAND
Altronix
MFG #
SMP5PMP8CB
SES #
ALT SMP5PMP8CB
UPC
782239940929
Your Price
Usually ships between 3-7 business days

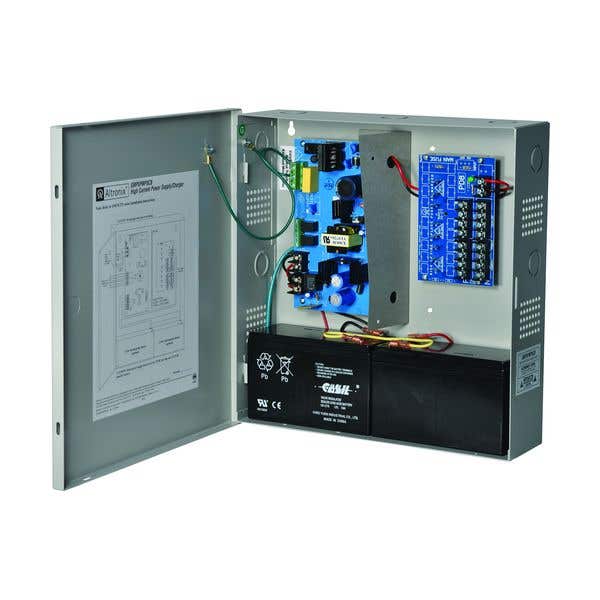

SMP5PMP8CB is a multi-output power supply/charger that converts a 115VAC/230VAC, 50/60Hz input into eight (8) 12VDC or 24VDC outputs.
- Input
- Input 115VAC, 50/60Hz, 0.95A or 230VAC, 50/60Hz, 0.5A.
- Output
- 12VDC or 24VDC selectable output.
- 4A supply current.
- Eight (8) PTC protected outputs (auto-resettable).
- Outputs are rated @ 2.5A.
- Filtered and electronically regulated outputs.
- Short circuit and thermal overload protection.
- Battery Backup
- Built-in charger for sealed lead acid or gel type batteries.
- Zero voltage drop when switching over to battery backup.
- Supervision
- AC fail supervision (form "C" contacts).
- Low battery supervision (form "C" contacts).
- Visual Indicators
- AC input and DC output LED indicators.
- Temperature
- Operating: 0° C to 49° C (32° F to 120° F).
- Storage: - 20° C to 70° C ( - 4° F to 158° F).
- Relative Humidity 85% +/- 5%.
- BTU/Hr. (approx.):
- 12VDC: 25 BTU/Hr.
- 24VDC: 49 BTU/Hr.
- System AC input VA requirement:
- 115VAC: 109.25VA.
- 230VAC: 115VA.
