Access/Power Integration for Paxton-Trove 2-up to 8 Drs
BRAND
Altronix
SES #
ALT T2PXK7F8
MFG #
T2PXK7F8
UPC
782239958627
Your Price
Usually ships between 3-7 business days

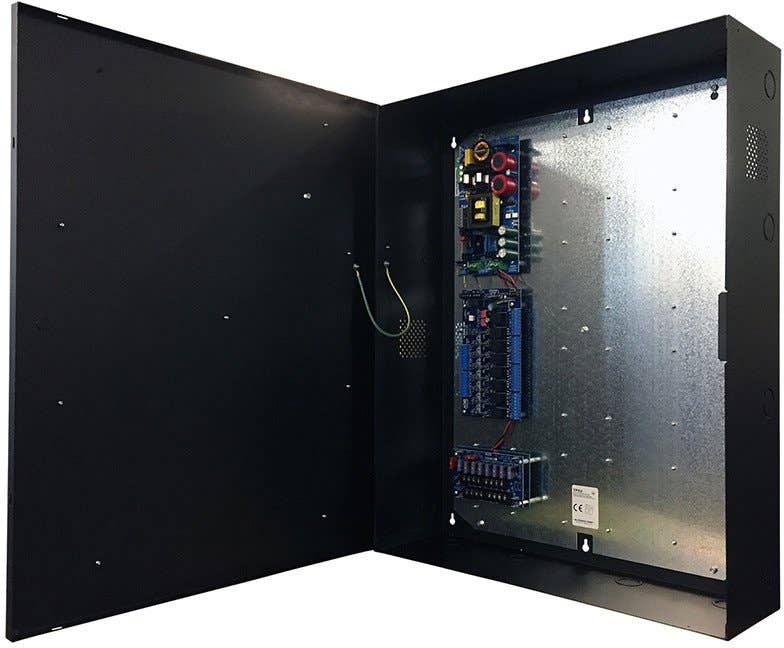

Altronix T2PXK7F8 kit consists of Trove2 enclosure, TPX2 Paxton/Altronix backplane with one (1) 24VDC @ 10A power supply/charger, one (1) fused access power controller, one (1) voltage regulator and one (1) dual input fused power distribution module.
This kit also accommodates up to eight (8) Paxton Net2 Plus modules for up to eight (8) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs.
- eFlow104NB Power Supply/Charger
- Input
- Voltage: 120VAC, 60Hz, 4.5A max.
- Main Fuse: 6.3A / 250V.
- Outputs
- Voltage: 24VDC @ 10A.
- Auxiliary: 1A (unswitched).
- Protection: Overvoltage protection. Filtered and regulated.
- Battery Backup (not included)
- Type: Sealed lead acid or gel type.
- Fuse Rating: 10A/32VDC.
- Failover: Upon AC loss, instantaneous.
- Fire Alarm Disconnect
- Supervised: Latching or non-latching.
- EOL: 10K Resistor.
- Supervision
- AC Failure: Form “C” contacts.
- Battery: Form “C” contacts.
- Low DC Power Shutdown: Shuts down DC output terminals if battery voltage drops below 71-73% for 12V units. Prevents deep battery discharge.
- Indicators LED
- AC Input: 120VAC is present.
- DC Output: Powered.
- Battery: Discharged or not connected.
- ACM8 Access Power Controller
- Input
- Voltage: 24VDC from eFlow104NB.
- Main Fuse: 10A / 32V.
- Outputs
- Voltage: 12VDC.
- Eight (8) 24VDC independently controlled fused outputs:
- a) Fail-Safe and/or Fail-Secure power outputs. Form “C” Relays rated 28VAC or VDC @ 2.5A.
- b) Auxiliary power outputs (unswitched).
- c) Any combination of the above.
- Output Fuses: 3.5A / 32VDC.
- Indicators (LED)
- Red LEDs: Outputs are triggered (relays energized).
- Green LED: FACP disconnect is triggered.
- VR6 Voltage Regulator
- Input/Output
- Voltage Range: 24VDC @ 10A = Output: 12VDC @ 6A.
- Output
- Voltage: 12VDC regulated output.
- Output rating: 6A max.
- Other: Surge suppression.
- Indicators LED
- Input: Indicates input voltage is present.
- Output: Indicates normal operating condition.
- PDS8 Dual Output Power Distribution Module
- Input
- Voltage Range: 5VDC to 24VDC, up to 10A each, 20A total input.
- Main Fuse Rating: 10A.
- Outputs
- Fuse protected outputs rated @ 3A per output, non power-limited. Total output 20A max.
- Do not exceed the individual power supply ratings.
- Any of the eight (8) fuse protected power outputs are selectable to follow power Input 1 or Input 2.
- Individual outputs may be set to OFF position for servicing.
- Outputs Ratings
- Voltage Range: 4.8VDC - 24VDC.
- Indicators (LED)
- DC Output: Individual voltage LEDs indicate 12VDC (Green) or 24VDC (Red/Green).
- Features
- Multiple units may be daisy-chained to accommodate larger systems.
- Environmental
- Temperature
- Operating: 0° C to 49° C (32° F to 120° F).
- Storage: - 20° C to 70° C ( - 4° F to 158° F).
- Relative Humidity
- Relative Humidity 85% +/- 5%.
- BTU/Hr (approx.):
- 113 BTU/Hr.
