Complete Business Music and Paging System for Ceiling Tile Applications with Wall Level Controller
BRAND
AtlasIED
SES #
ATL EZSYSBGMC
MFG #
EZSYS-BGM-C
UPC
No UPC Set
Your Price
Usually ships between 3-7 business days
The EZSYS-BGM-C package is an entire business music and paging system. It includes the proper amplification, system control, and speakers. All you need are audio sources and cables. The box illustrates the proper way to connect the equipment including cable and tool requirements.

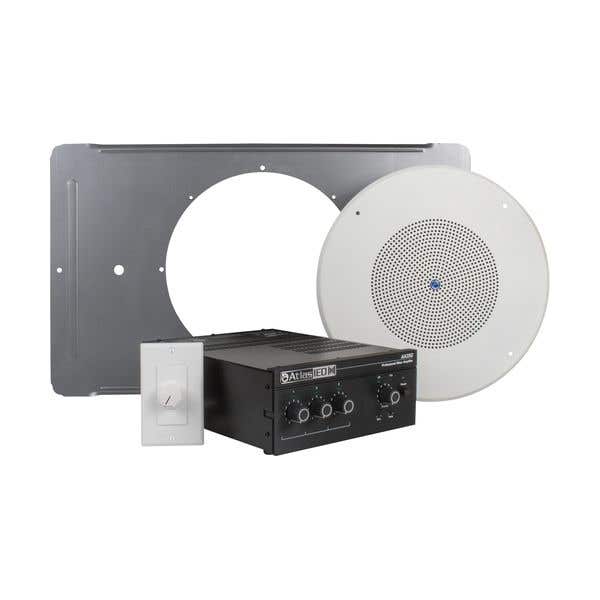

Package Includes:
- (6) Atlas Sound SD72W 8" Dual Cone In-Ceiling Loudspeakers
- (1) Atlas Sound AA35G 35W Mixer Amplifier
- (1) Atlas Sound AT35D 35W Decora Plate Mounted Attenuator
- (6) Atlas Sound 81-8R 8" Round Hole T-Bar Bridges
- Atlas Sound SD72W 8" Dual Cone In-Ceiling Loudspeakers:
- 10oz dual cone speaker provides familiar response & performance
- Attractive CRS white powder coat baffle
- Individually packaged for stocking & ordering convenience
- Quality 5 watt-dual voltage transformer
- ETL certified, safety listed to UL1480 and UL2043
- Atlas Sound AA35G 35W Mixer Amplifier:
- Three inputs (each with a front panel volume control) and a single output channel
- Ideal for paging, background music, and music-on-hold applications
- Balanced mic/line input, zone 2, and dual RCA stereo music inputs
- Priority muting by VOX or external switch
- Bass and Treble controls on master output
- Secondary Zone 2 Output 1W & 600Ω/MOH
- Universal AC Power Supply for use in any 120V to 240V country
- 70V, 100V, or 8Ω amplifier output
- Signal presence LED indicators
- Atlas Sound AT35D 35W Decora Plate Mounted Attenuator:
- Attractive alternative to commercial series attenuators
- Mount into most 1-gang E.O. boxes
- UL Listed
- White and ivory plastic plates with matching skirted knobs in decora style
