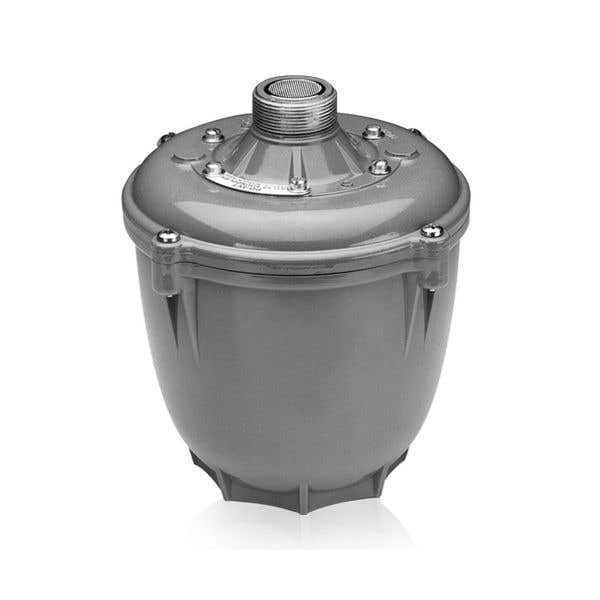

Compression Driver for Large Format Horn Speakers with 60W 70V Transformer
BRAND
AtlasIED
SES #
ATL PD60AT
MFG #
PD60AT
UPC
No UPC Set
Your Price
Usually ships between 3-7 business days
The PD-60AT is a fully environment-resistant 60 watt driver for indoor or outdoor applications recommended for use in expansive and/or high ambient sound-level areas. Unit features a sound chamber, phasing plug and magnetic-structure components machined to optimum tolerances. Plane wave frequency response is 100Hz - 3.7kHz.
The PD-60AT features a built-in varnish impregnated, multi-tap 70 volt line-matching transformer. Corrosion-resistant terminal connections are protected by a transparent, impact-resistant plastic cover which provides strain relief for the interconnecting cable. The PD-60AT is terminated in standard 1 3/8"-18" thread male couplings for use with screw-on horns.
- Driver Provides Accurate Sound Reproduction, Optimum Intelligibility and Dependable Performance
- Perfect for High Power 70.7V Public Address Systems
- Use with CJ-46 BIA100 and DR Series Horns
Frequency Response
100Hz - 3.7kHz
Sensitivity
112.7 (avg) 100 - 3,700 Hz
Power Taps
2.5, 5, 10, 20, 40, 60W @70.7V
Height
6 7/8" (17.46 cm)
Diameter
6 3/8" (16.19 cm)
Shipping Weight
8.66 lbs (3.93 kgs)
