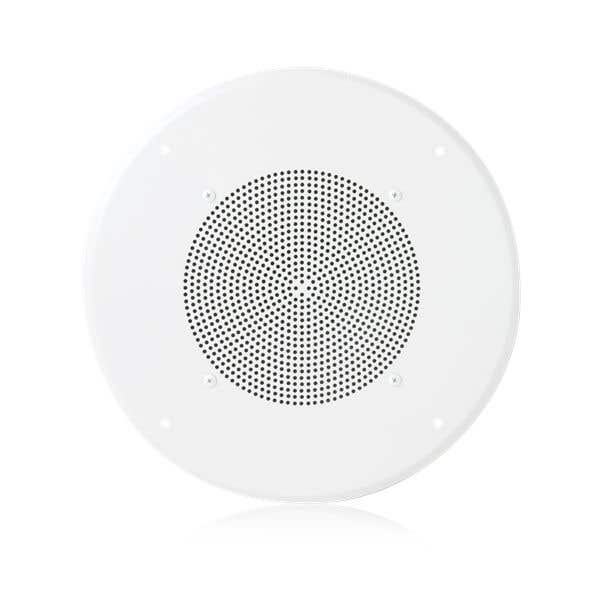

8" In-Ceiling Speaker for Fire Signaling with 5W 70V Transformer and U51-8 Baffle
BRAND
AtlasIED
SES #
ATL UHT70C-U51-8
MFG #
UHT70C-U51-8
UPC
No UPC Set
Your Price
Usually ships between 3-7 business days
AtlasIED's UHT70C-U51-8 are 8" diameter single voice coil speakers equipped with dual (whizzer) cone and 10 oz. ceramic magnet to deliver extended frequency response with high intelligibility and minimal distortion. Cost-effective units are complete with fire-retardant moisture-proof cones, factory-mounted 70.7V transformer, 6" color-coded leads, DC blocking capacitor and a 51-8 baffle.
To comply with UL requirements, speaker packages must be used with UL-approved enclosures
- Attractive Ceiling-Loudspeaker/Baffle Assemblies Provide Unobtrusive Appearance of Life Safety and Emergency Signaling Loudspeakers
- Listed Under UL Standard 1480 (Speakers for Fire-Protective Signaling Systems)
- Selection of Baffle Styles and Multi-Tapped Transformers Meet a Variety of Aesthetic and Application Requirements
- Selection of UL Approved, Companion Enclosures is Offered
- UL Listed, Fire-Retardant and Moisture-Proof Cone Loudspeakers Reproduce Emergency Alarm and Voice Instructions with Superior Intelligibility and Extended Frequency Response
Frequency Response
85Hz - 8kHz
Sensitivity
97dB Peak, 94dB Avg.
Power Taps
.5, 1, 2, & 5 Watts
Power Rating
10 Watts
Diameter
8" (20.32 cm)
Depth
2 7/8" (7.3025 cm)
Shipping Weight
4.67 lbs (2.12 kgs)
Safety Listed
1480
Weight
9.5 lbs (4.3kg)
