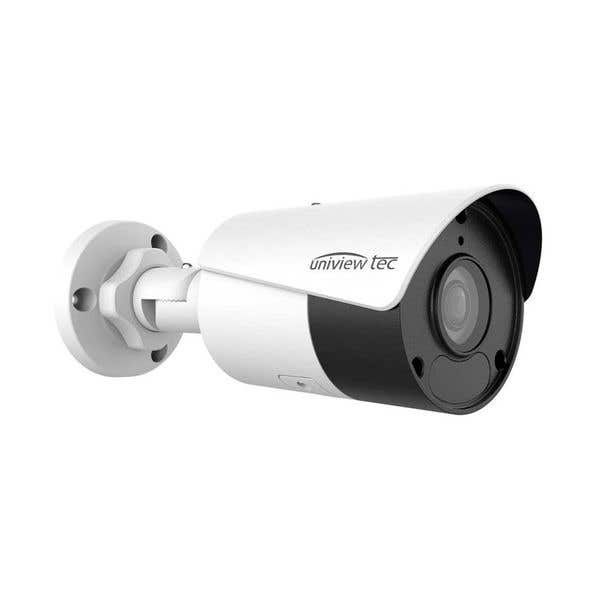

4MP IP67 Bullet Camera, 2.8mm TDN, WDR, IR, 12VDC/PoE-NDAA
BRAND
Uniview Tec
SES #
ATV IPB4E28X
MFG #
IPB4E28X
UPC
No UPC Set
Your Price
Usually ships between 3-7 business days
- Fully Adheres to National Defense Authorization Act (NDAA) Guidelines
- Exceptional Video Quality with 4MP, 2688 x 1520 Resolution
- Super-Efficient H.265 Video Compression for Drastically Reduced Bandwidth and Storage Requirements
- Powerful, Smart IR LED Lights for 0Lux Night Time Operation up to 164 Feet
- 2.8 fixed, wide-angle lens
- One-way Audio with Built-in Microphone
- TRUE Day/Night and WDR functionality for all Lighting Conditions
- Backlight Compensation, Corridor Mode, Defog and 3D DNR (Digital Noise Reduction)
- Dual Video Streams & ONVIF Profile S Compliant
- Intrusion Detection Analytics
- PoE & 12VDC Power Options
- Built-in Micro-SD Card Slot enables local storage up to 256GB
- IP67 Weather Resistant Housing
- 3-Way Axis and Optional Mounts Available
- Supported by uniview tec Guard Station Software and Guard Viewer Mobile App’s for iPhone and Android Devices
Sensor
1/3", progressive scan , 4 megapixel, CMOS
Lens
2.8 mm@ F1.6
Angle of View (H x V)
101.1° x 55.3°
Shutter
Auto/Manual, 1/6 ~ 1/100000 s
Minimum Illumination
Color: 0.003 Lux (F1.6, AGC ON); 0 Lux with IR
Day/Night
IR-cut filter with auto switch (ICR)
Digital noise reduction
2D/3D DNR
Smart IR LED Range / Wavelength
Up to 50m (164ft) IR range / 850nm
WDR
120dB
Video Compression
Ultra 265, H.265, H.264, MJPEG
H.264 code profile
Baseline profile, Main Profile, High Profile
Maximum Frame Rate / Stream
Main: 4MP (2688 x 1520) @ 25fps; Sub: 720P (1280 x 720) @ 30fps
HLC, BLC, 9:16 Corridor, Defog, Flip
Supported
OSD, Privacy Mask, Motion Detection & ROI
Up to 8 areas
Protocols
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS
Compatible Integration
ONVIF (Profile S, G, T), API
Network
RJ45, 10M/100M Base-TX Ethernet
Intrusion Detection
Cross Line, Intrusion, Motion & Tampering Detection
Local & Network Storage
Micro-SD, up to 256GB; ANR
Power
12VDC, PoE (IEEE802.3 af); Power consumption: Max 6W
Audio
1 / 0, w/ built-in Mic; G.711
Dimensions (L x W x H) & Weight
190 × 73 × 71mm (7.5 × 2.9 × 2.8”); 0.45kg (0.99lb)
Operating Temperature & Humidity
-30°C ~ +60°C (-22°F ~ 140°F); Humidity: 10%~95% RH (non-condensing)
Conformity Certifications
IP67, CE, FCC
