4-Way Optical Switch with Built-in DAC and Audio Conversion
BRAND
Blustream USA
MFG #
OPT41AU
SES #
BLU OPT41AU
UPC
9340242000712
Your Price
Usually ships between 3-7 business days

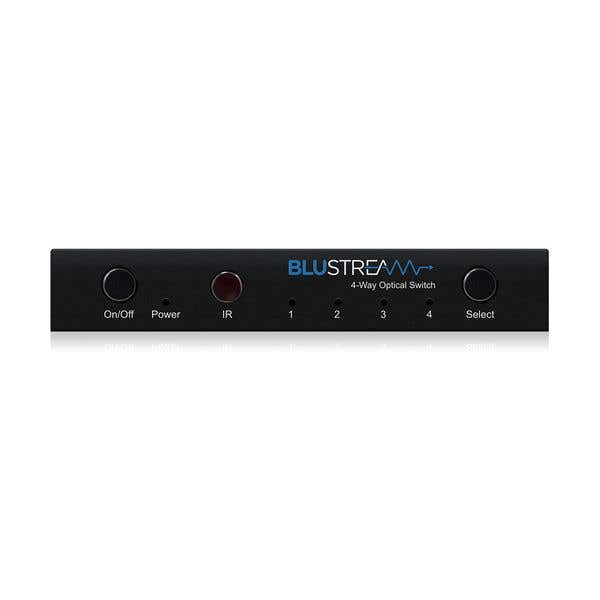

The Bluestream OPT41AU is an advanced 4-way optical audio switch. Perfect for the integration of multiple audio sources with a soundbar.
The OPT41AU also has a built in DAC and simultaneous digital and analog stereo audio outputs.
The OPT41AU supports 192kHz sample rates and up to 24-bit resolution for enhanced sound reproduction.
Box Contents
- 1 x OPT41AU
- 1 x IR Remote Control
- 1 x 5V/1A DC Power Supply
- 1 x Mounting Kit
- 1 x User Manual
- Features 4 x optical S/PDIF digital inputs which can be switched to single optical output
- DAC (Digital to Analog Audio Converter) converts selected optical digital to analog left / right stereo audio output
- Built-in digital audio converter converts selected optical audio input to coaxial digital output
- Outputs optical digital, coaxial digital and analog left / right stereo audio concurrently
- Supports sample rates 32kHz, 44.1kHz, 48kHz, 96kHz & 192kHz up to 24-bit resolution
- Supports LPCM, DTS, Dolby Digital and Dolby Digital plus when used as a straight digital in / digital out switcher
- Ultra low jitter and high fidelity design
- Input selection button on front panel to toggle between optical inputs
- IR receiver on front panel to switch inputs and turn on / off audio outputs using supplied IR remote
- External IR input can be used to extend IR with Blustream IR receiver cable
Audio Input Connectors
4 x optical (S/PDIF)
Output Connectors
1 x optical (S/PDIF), 1 x RCA (S/PDIF) & 1 x analog audio L/R (3.5mm stereo jack)
IR Input Ports
1 x 3.5mm stereo jack
Product Dimensions (W x D x H)
140 x 80 x 25mm (with connections)
Product Dimensions (W x D x H)
140 x 70 x 25mm (without connections)
Product Weight
0.25kg (excluding accessories)
Carton / Box Dimensions (W x D x H)
210 x 125 x 90mm
Shipping Weight
0.5kg
Operating Temperature
32°F to 104°F (0°C to 40°C)
Storage Temperature
-4°F to 140°F (-20°C to 60°C)
Power Supply
5V/1A DC, screw type connector
