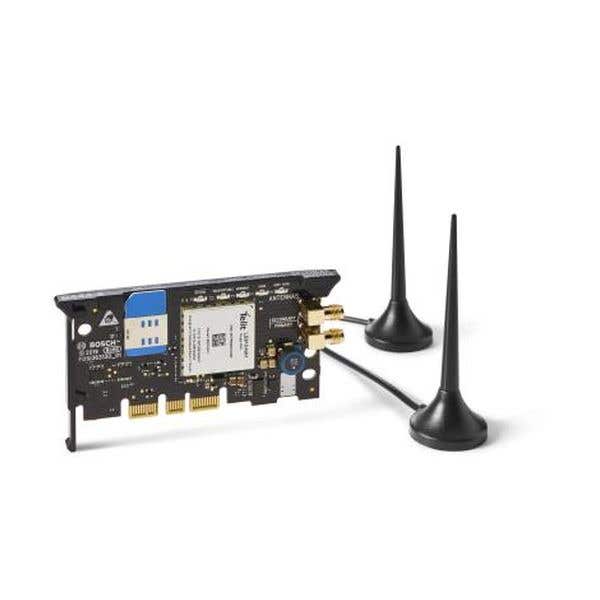

Connetix Plug-in Cell Module AMEC-LTE
BRAND
Bosch Security
MFG #
B444-A
SES #
BOS B444-A
UPC
800549953535
Your Price
Usually ships between 3-7 business days
- Secure Conettix IP communication to Bosch receivers using the AT&T cellular network, including support for Rogers and Ice wireless services in Canada.
- Remote programming and monitoring of compatible Bosch panels
- E-mail notification options
- Direct configuration from Bosch Remote Programming Software (RPS) eliminates the need for separate set-up
- Simple LED status information and advanced keypad diagnostics available with easy two-step plug-in installation, troubleshooting, and maintenance
Current (operating)
Standby: 35 mAAlarm: 100 mA
Voltage (operating)
12 VDC nominal
Radio
North America LTE CAT 1, Bands 2, 4, 5, 12North America UMTS / HSPA+, Bands 2, 5
Environment
Environmental Class III - Indoor
Relative humidity
5 - 93% at +32°C (+90°F) non-condensing
Operating temperature
0°C to +49°C (+32°F to +120°F)
Board dimensions
2 in x 3.68 in x 0.60 in (50 mm x 93.5 mm x 15.25 mm)
Antennas (included)
Magnetic base omni-directional 3.3 ft (1.0 m) cable with SMA connector
SIM card
AT&T
