Bosch B921C Two-Line Keypad with Touch Keys - Inputs

BRAND
Bosch Security
MFG #
B921C
SES #
BOS B921C
UPC
800549824163

Your Price

Usually ships between 3-7 business days

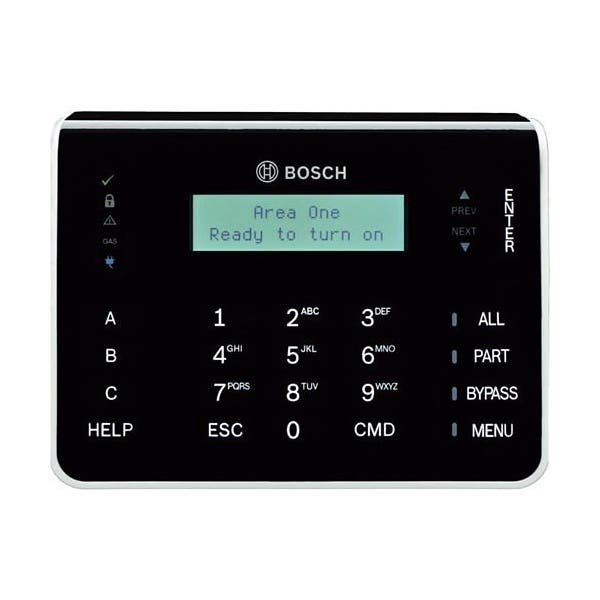

The B921C keypad is an SDI2 bus compatible device. The keypad features capacitive touch keys, instead of the mechanical buttons found on most keypads. With a smooth, sleek surface, the keypad is easy to clean, and fits with any modern decor. The keypad has user adjustable options such as volume and brightness. The keypad has three programmable emergency keys, and four inputs. The keypad also shows two-line system messages for all areas. The keypad uses words, numbers, and symbols to show the status of the security system. When several events occur, the keypad shows each event in order of priority. Each keypad has 10 number keys, 7 function keys, and 6 navigation keys. When pressed, keys turn on keypad backlighting and emit the keypress tone (short beep). The function keys include programmable function keys and keys to initiate arming and bypassing with one keypress. The keypad has a built-in speaker that produces several distinct warning tones. The tones are differentiated so that the user can recognize an event simply by hearing its associated tone. The keypad backlight illuminates when it emits an audible tone. Users can use a passcode to silence the tone.

  • 2-line LCD display with up to 32 character point, user, and area names
  • Capacitive touch keys clean easily and are more resistant to wear than traditional mechanical buttons
  • Situation sensitive on-screen help makes system operation simple and easy
  • Highly visible on (arm)/alarm, ready to turn on (arm), power, trouble, and gas alarm indicators
  • Four inputs provide simple, lower-cost point expansion
Dimensions
6.2 in x 4.7 in x 1 in (158 mm x 120 mm x 26 mm)
Weight
11.3 oz (0.32 kg)
Material
Acrylonitrile butadiene styrene (ABS) Poly(methyl methacrylate) (PMMA)
Display window
2 line display 18 characters per line
Indicators
Illuminated keys Status indicators Warning and indicating tones
Inputs
4 (four) 1k Ω supervised inputs
Relative humidity
5% to 93% at +32°C (+90°F) non-condensing
Temperature (operating)
0°C to +50°C (+32°F to +122°F)
Mounting considerations
Mount in dry indoor locations.
Current
Standby:45 mA Alarm: 85 mA
Voltage (input)
12 VDC nominal
Terminal wire size
12 AWG to 22 AWG (2.0 mm to 0.65 mm)
SDI2 wiring
Maximum distance – wire size (unshielded wire only): 1000 ft (305 m) – 22 AWG (0.65 mm)
