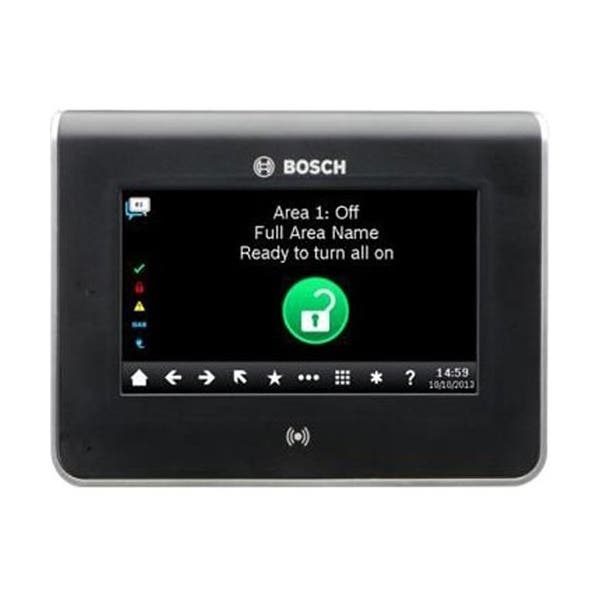

Bosch B942 Touchscreen Intrusion LCD Keypad - Black
BRAND
Bosch Security
MFG #
B942
SES #
BOS B942
UPC
800549824187
Your Price
Usually ships between 3-7 business days
The keypad is an SD12 bus compatible device. The keypad features an illuminated touch screen and graphical interface. With an elegant design and low profile, the keypad fits with any modern decor. Each keypad has user adjustable options such as volume and brightness. They have four inputs and one output. The keypad shows system messages for all areas. Available languages: English, Chinese, Dutch, French, German, Greek, Italian, Hungarian, Polish, Portuguese, Spanish, Swedish.
- Color graphic touch screen display uses a combination of simple icons and text for easy operation
- Built-in presence detector lights the displayWhen user approaches keypad
- Built-in proximity reader allows use of a token or card as replacement for a passcode, or for use with dual authentication for high security areas
- Four inputs and one output provide cost effective expansion
- Slim, modern design blends with any décor
Dimensions
158 mm x 120 mm x 16.5 mm (6.2 in x 4.7 in x 0.65 in)
Weight
0.32 kg (11.3 oz)
Material
Acrylonitrile butadiene styrene (ABS) Poly(methyl methacrylate) (PMMA)
Display window
Touch screen Multi-line messages
Indicators
Power indicator LED Status indicators Main icon Warning and indicating tones
Inputs
4 (four) 1k Ω supervised inputs
Output
1 (one) NO (normally open) contact
Relative humidity
5% to 93% at +32°C (+90°F) non-condensing
Temperature (operating)
0°C to +50°C (+32°F to +122°F)
Current with proximity reader disabled
Standby: 200 mA Alarm: 300 mA
Current with proximity reader enabled
Standby: 300 mA Alarm: 400 mA
Voltage (input)
12 VDC nominal
Terminal wire size
18 AWG to 22 AWG (1.02 mm to 0.65 mm)
SDI2 wiring with prox detector disabled
Maximum distance - wire size (unshielded wire only): 200 ft (61 m) - 22 AWG (0.65 mm) 520 ft (159 m) - 18 AWG (1.02 mm)
SDI2 wiring with prox detector enabled
Maximum distance - wire size (unshielded wire only): 150 ft (46 m) - 22 AWG (0.65 mm) 390 ft (119 m) - 18 AWG (1.02 mm)
On-board points voltage ranges
Open: 2.2 to 5.0 VDC Normal: 1.4 to 1.8 VDC Short: 0.0 to 1.0 VDC Short circuit current: 2.3 mA
Relay contact rating
24 VDC, 1 A, power factor: 1
