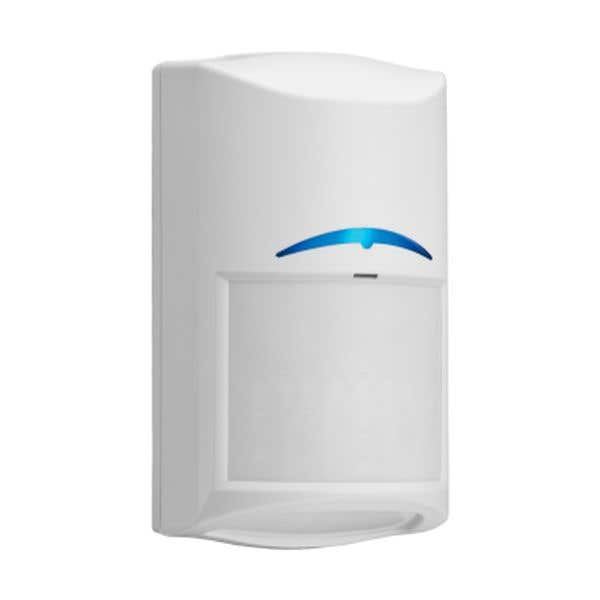

40'x40" Commercial TriTech Motion Detector w/Anti-Mask
BRAND
Bosch Security
MFG #
ISC-CDL1-WA12G
SES #
BOS ISC-CDL1-WA12G
UPC
800549806312
Your Price
Usually ships between 3-7 business days
- Active infrared anti-mask. Detects attempts to obscure the detector's field of view
- Cloak and Camouflage Detection Technology (C2DT)
- Flexible Mounting Height, No Adjustments – reduce installation time and false alarms, improve catch performance
- Integrated EOL resistors. Reduces installation time and complexity
- TriTech. Passive infrared and microwave Doppler radar detection with First Step Processing for superior catch performance and best-in-class false alarm immunity
Dimensions
120 mm x 70 mm x 55 mm (4.7 in. x 2.75 in. x 2.2 in.)
Material
High-impact ABS plastic
Color
White
Terminal wire size
Ø 0.40 mm to 1.29 mm (26 AWG to 16 AWG) (UL: 22 AWG to 16 AWG)
Relative humidity
93% non-condensing
Temperature (operating)
G models: -20° C to +55° C (+4° F to +130° F) H models: +5° C to +40° C (+41° F to +104° F) UL: 0°C to +49°C (+32°F to +120°F)
Current
Standby = 15 mA (UL: Maximum current = 35 mA)
Voltage (operating)
9 VDC to 15 VDC
Radio Frequency Interference (RFI) Immunity
No alarm or setup on critical frequencies in the range from 150 kHz to 2.7 GHz at field strengths less than 10 V/m.
Alarm relay, trouble relay
Solid state, supervised, normally-closed (NC) contacts rated for
