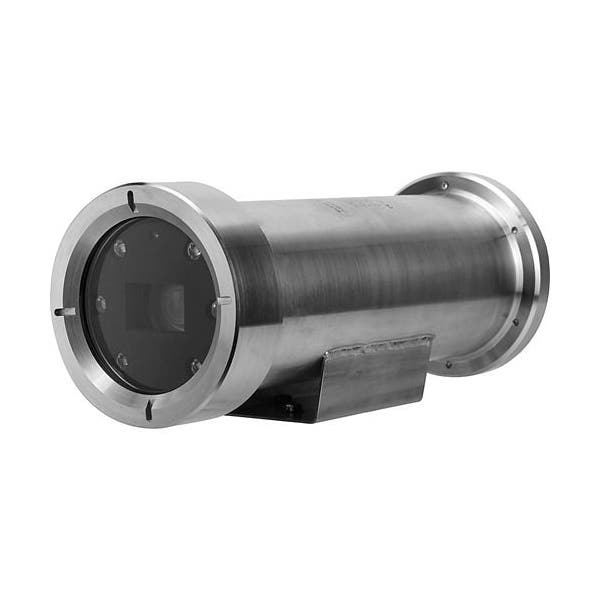

Explosion-Protected IR Network Camera-2MP 30x Zoom
BRAND
Dahua Technology
SES #
DAH DH-EPC230U
MFG #
DH-EPC230U
UPC
No UPC Set
Your Price
Usually ships between 3-7 business days
The Dahua Explosion-protected Camera series features a powerful optical zoom lens and a rugged design that meets the ATEX and the IECEx standards. This camera series uses a 1/2.8-in. STARVIS™ CMOS imager with a 30x optical zoom lens, and provides an all-in-one solution for capturing long-distance video security. The camera uses the H.265 video compression standard to improve encoding efficiency while preserving high-quality video. The explosion-protected stainless steel camera is designed to prevent ignition of surrounding gasses or combustible dust.
- 1/2.8” 2Megapixel STARVIS™ CMOS
- Powerful 30x optical zoom
- 304 stainless steel housing
- Starlight technology
- H.265 Encoding
- Max. 50/60fps@1080P
- Support IVS
- IR distance up to 100m
- ATEX and IECEx Certifacation
- IP68
Image Sensor
1/2.8” STARVIS™ CMOS
Effective Pixels
1920(H) x 1080(V), 2 Megapixels
RAM/ROM
512M/128M
Scanning System
Progressive
Electronic Shutter Speed
1/1s~1/30,000s
Minimum Illumination
Color: 0.005Lux@F1.6; B/W: 0.0005Lux@F1.6; 0Lux@F1.6 (IR on)
S/N Ratio
More than 55dB
IR Distance
Distance up to 100m (328ft)
IR On/Off Control
Auto/Manual
IR LEDs
6
Focal Length
4.5mm~135mm
Max. Aperture
F1.6 ~ F4.4
Angle of View
H: 67.8° ~ 2.4°
Optical Zoom
30x
Focus Control
Auto/Manual
Close Focus Distance
100mm~ 1000mm
DORI Distance
Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.
Detect
1862m(6109ft)
Observe
744m(2441ft)
Recognize
372m(1220ft)
Identify
186m(610ft)
Auto Tracking
N/A
IVS
Tripwire, Intrusion, Abandoned/Missing, Face Detection, Heat Map
Compression
H.265+/H.265/H.264+/H.264
Streaming Capability
3 Streams
Resolution
1080P(1920×1080)/1.3M(1280×960)/720P(1280× 720)/D1(704×576/704×480)/CIF(352×288/352×240)
Frame Rate
Main stream: 1080P/1.3M/720P(1~50/60fps); Sub stream1: D1/CIF(1 ~ 25/30fps); Sub stream2: 1080P/1.3M/720P/D1/CIF (1~25/30fps)
Bit Rate Control
CBR/VBR
Bit Rate
H.265/H.264: 448K ~ 8192Kbps
Day/Night
Auto(ICR) / Color / B/W
Backlight Compensation
BLC / HLC / WDR (120dB)
White Balance
Auto, ATW, Indoor, Outdoor, Manual
Gain Control
Auto / Manual
Noise Reduction
Ultra DNR (2D/3D)
Motion Detection
Support
Region of Interest
Support
Electronic Image Stabilization (EIS)
Support
Defog
Support
Digital Zoom
16x
Flip
180°
Privacy Masking
Up to 24 areas
Compression
G.711a/G.711Mu/AAC/G.722/G.726/MPEG2-L2
Ethernet
RJ-45 (10Base-T/100Base-TX)
Protocol
IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP,DHCP, DNS,PPPOE,DDNS,FTP, IP Filter,QoS,Bonjour,802.1x
Interoperability
ONVIF Profile S&G, API
Streaming Method
Unicast / Multicast
Max. User Access
20 users
Edge Storage
NAS (Network Attached Storage),Local PC for instant recording, Micro SD card 256GB
Web Viewer
IE, Chrome, Firefox, Safari
Management Software
Smart PSS, DSS, DMSS
Smart Phone
IOS, Android
Certifications
CE: EN55032/EN55024/EN50130-4; FCC: Part15 subpartB,ANSI C63.4- 2014; ATEX: EN 60079-0/EN 60079-1/EN 60079-31; IECEx : IEC 60079-0/IEC 60079-1/IEC 60079-31
Explosion-proof Marking
ATEX: II 2 G Ex db IIC T6 Gb, II 2 D Ex tb IIIC T80°C Db; IECEx : Ex db IIC T6 Gb, Ex tb IIIC T80°C Db
Video Interface
1 port(BNC, 1.0V[p-p], 75Ω)
RS485
1
Audio I/O
1/1
Alarm I/O
2/1
Power Supply
AC220V(AC100V ~ 240V), Hi-PoE
Power Consumption
10W, 25W (IR on)
Operating Conditions
-40°C ~ 60°C (-40°F ~ +140°F) / Less than 95% RH
Ingress Protection
IP68
Vandal Resistance
N/A
Casing
304 Stainless Steel
Dimensions
Φ396.1mm×149.5mm×143mm
Net Weight
8.7kg(19.18lb)
Gross Weight
10.4kg(22.93lb)
