PowerSeries / Maxsys Internet Alarm Communicator

BRAND
DSC
SES #
DSC TL250
MFG #
90000069
UPC
820043013092

Your Price

Usually ships between 3-7 business days

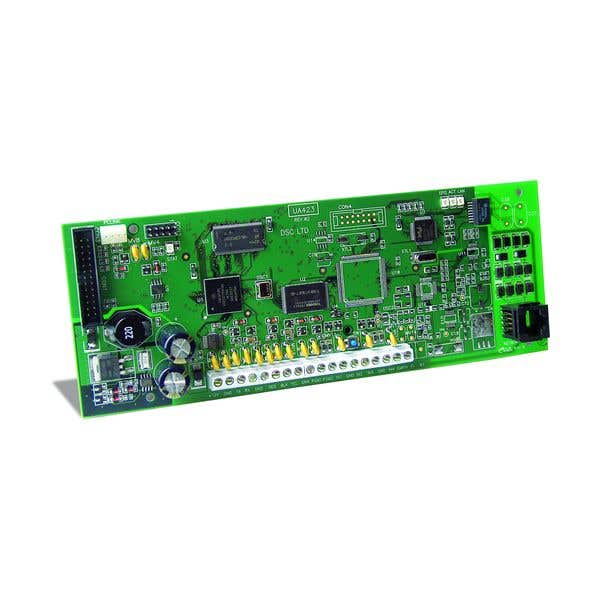

T-Link TL250 Internet alarm communicators create fully supervised security solutions between protected premises and central monitoring stations. The simple-to-install modules save end-users money by taking advantage of their existing networks to provide secure Internet communications over a private network (LAN/WAN) or the Internet, between the control panel and the Sur-Gard System ll/III central station receivers. This method provides flexibility and an always-on, two-way line of communication. The TL250 communication stream is small and requires only a limited amount of network bandwidth. This ensures that the integrity of the data being transferred never becomes compromised. To reduce security risks, the TL250 utilizes industry-leading, 128-bit AES encryption, polling and hardware substitution protection.
  • Compatible with PowerSeries (v3.24 and higher) and MAXSYS (v3.31 and higher) control panels
  • Works over local LAN/WAN network or the Internet
  • 128-bit AES encryption (NIST approved)
  • Supports DHCP (dynamic IP addresses)
  • Low network bandwidth requirements
  • Compatible with 10/100BaseT networks
  • Reports events to 2 different receiver IP addresses
  • Polling and hardware substitution protection
  • Instant, always-on IP communication
  • Software upgrades via network
  • 4 on-board programmable inputs and 2 programmable voltage outputs as stand-alone module
  • Programmable through the system keypad, PK5500 LCD keypad or T-Link Console software
  • Download control panel via Internet with DLS software
  • Compatible with Sur-Gard System I/II/III/IV/5 monitoring station receivers
  • UL standard & encrypted line security
  • ULC passive or active line security levels A1-A4
Dimensions
3.25" x 5.25" (83 mm x 133 mm)
Input Voltage
12 VDC
Current Draw
250 mA (275 mA with PGM or PC5108)
Operating Environment
32° to 120° F (0° to 49° C)
Relative Humidity
5% to 93%
