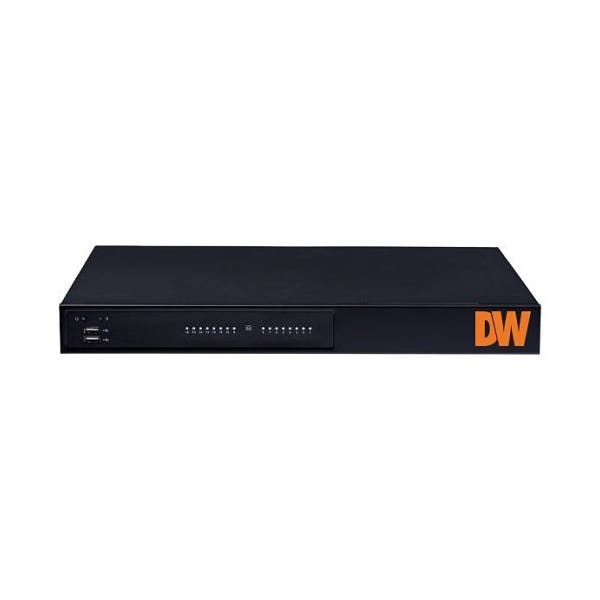

16CH Blackjack CX1 NVR with 4 Camera Licenses - 8TB HDD Included
BRAND
Digital Watchdog
SES #
DWC BJCX8TLX
MFG #
DW-BJCX8T-LX
UPC
812226037575
Your Price
Usually ships between 3-7 business days
The Blackjack® CX™ is a sophisticated yet easy to use and cost effective recording solution, eliminating the need for complicated power and wiring installation. The NDAA and TAA-compliant NVR is a plug-and-play embedded NVR powered by DW Spectrum IPVMS with up to 15W simultaneous local PoE power on all ports, giving customers significant versatility on camera choices, with real-time 30fps live and recorded video capabilities. Eight additional ports are supported when you add an external switch. The NVR comes with alarm inputs and outputs, microphone/audio input and output, an Intel® quad-core processor, 8GB memory and local display output up to 4K. The Blackjack CX is available with up to 40TB of internal storage and a 5-year limited warranty.
- Supports all ONVIF conformant IP cameras
- Storage options 8-40TB internal storage
- Record and manage up to 24 IP cameras with local PoE support for 16 channels
- Record and manage single- and multi-sensor IP cameras of any resolution up to 80Mbps throughput
- Intel® processor
- 1xTrue HD, 1x DVI, 1 display output at a time
- Dual network ports
- 4 alarm inputs, 2 alarm outputs
- 1 audio input, 1 audio output, 1 microphone input
- One-time recording license charge, fully transferable between cameras and encoders
- One (1) 4-channel licenses included (DW-SPECTRUMLSC004)
- No annual maintenance fees
- Simple enterprise scalability and auto device discovery
- Dual stream recording
- Wall mount and rack mount ears available. Sold separately
- USB mouse and keyboard included
- DW-BJCXRM rack mount ears included with the recorder
- Designed, assembled and tested in the U.S.A.
- NDAA/TAA compliant
- 5 Years limited warranty
CPU
Intel® Celeron processor
Data rate (Mbps)
80Mbps
Display Modes
Unlimited, Sequence, Customizable
Input channels
24 Channels, 16 PoE channels
Local Video Output Resolution
4096 x 2160
Local Video Outputs
True HD, 1 display output at a time, For initial configuration and server management
Memory
8GB
PoE Type
802.3af support 16 ports x 10/100 PoE, per port (240W max PSE)
Video Compression
H.264, H.265
Video Operating System
Linux® OS
OS on SSD
m.2 SSD
Raw internal storage options
8TB 16TB 24TB 32TB 40TB
Max HDD Bay
2 x SATA HDD
Maximum Storage
40TB
RAID Options
No RAID
Alarm in/out
2 alarm outputs, 4 alarm inputs, Terminal block
Audio in/out
1 input, 1 output
Performance features
PoE built-in, Digital Zoom in live and playback
Playback Functions
Timeline, Calendar, Event search, Thumbnail search, Smart motion search
PTZ control
ONVIF
Recording Modes
Continuous, Motion detection, Motion + low res always, Object only, Object + Low res, Motion + Object, Motion + Object + Low res
System Operation
Graphical user interface (GUI), USB mouse (included), Remote via DW Spectrum IPVMS
Backup
Network backup via DW Spectrum IPVMS
Ethernet Ports
2x 1G Ethernet (RJ45)
Network Remote Software
DW Spectrum Mobile App, Cross-platform - Windows®, Linux Ubuntu® and Mac®
Pre-loaded VMS software
DW Spectrum® IPVMS
Power Consumption
410W
Power Requirements
110~240V A/C
Total PoE Power Budget
240W
Accessories
Keyboard, Mouse
Certification
NDAA Compliance, ONVIF Conformant, TAA Compliance
Form Factor
Slim Desktop
Included IP licenses
4
Operating Temperature and Humidity
10~90% RH, 32°F~104°F (0°C~40°C)
Recorder Dimensions (H X W X D)
1.75” (H) x 16.92” (W) x 13.7” (D) (44.5mm (H) x 430mm (W) x 348mm (D))
Recording Licenses (Optional. Sold Separately)
DW-SPECTRUMLSC001 - Single DW Spectrum® IPVMS Recording License, DW-SPECTRUMLSC004 - Four (4) DW Spectrum® IPVMS Recording Licenses, DW-SPECTRUMLSC010 - Ten (10) DW Spectrum® IPVMS Recording Licenses, DW-SPECTRUMLSC020 - Twenty (20) DW Spectrum® IPVMS Recording Licenses, DW-SPECTRUMLSC050 - Fifty (50) DW Spectrum® IPVMS Recording Licenses, DW-SPECTRUMLSC100 - One hundred (100) DW Spectrum® IPVMS Recording Licenses, DW-SPCP04LSC004 - Four (4) DW Spectrum® Analog Encoder IPVMS Licenses, DW-SPIOLSC001 - Single DW Spectrum® I/O Module IPVMS License, DW-SPCP16LSC016 - Sixteen (16) DW Spectrum® Analog Encoder IPVMS Licenses, DW-SPVWALL1X2 - Single DW Spectrum® Video Wall IPVMS License, Custom-ordered licenses are available by request., Lifetime upgrades are included with no annual renewal fees.
Serial ports
RS485, ONVIF
USB interface
Yes
Warranty
5 Year Limited Warranty
