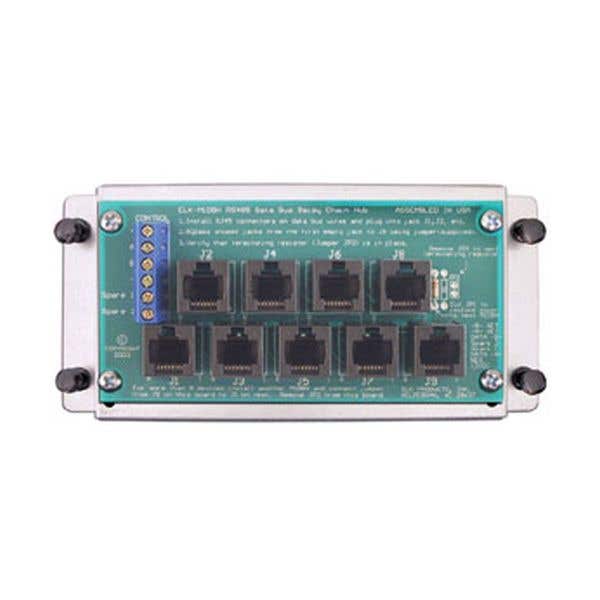

M1 Data Bus Hub
BRAND
Elk Products
MFG #
M1DBH
SES #
ELK M1DBH
UPC
762158550027
Your Price
Usually ships between 3-7 business days
Data bus hub (for proper termination of multiple bus devices)
For easy connection of expanders & keypads. The M1DBH accepts up to 9, RJ45 equipped CAT5 or CAT6 cables, and series connects the data A & B lines so the data bus may be terminated properly. Two or more units may be interconnected if more than 9 data lines are required.
In The Box:
- ELK-M1DBH Data Bus Hub
- 4 pieces of Double Sided Tape
- RJ45 Terminating Plug
- ELK-SWP3 Multipurpose Adapter Plate
- 4 Pan Head Thread Cutting Screws
- ELK-W018B 4-wire Cable Assembly
- Instructions
- Designed For Multiple Home Run Cables
- Internally Connects Data A & B Lines From Previous Device In to Next Device Out
- Provides up to Nine (9) Data Bus Connections
- Multiple Hubs May be Connected for Expansion
- EOL Bus Termination Can Be Done On-Board, RJ45 Terminating Resistor Plug Included
- Mounting Plate for structured Wire Boxes
