M1 Data Bus Hub For Retrofit
BRAND
Elk Products
MFG #
M1DBHR
SES #
ELK M1DBHR
UPC
762158550379
Your Price
Usually ships between 3-7 business days
Data bus hub Retrofit (for existing 4 cond. wiring)

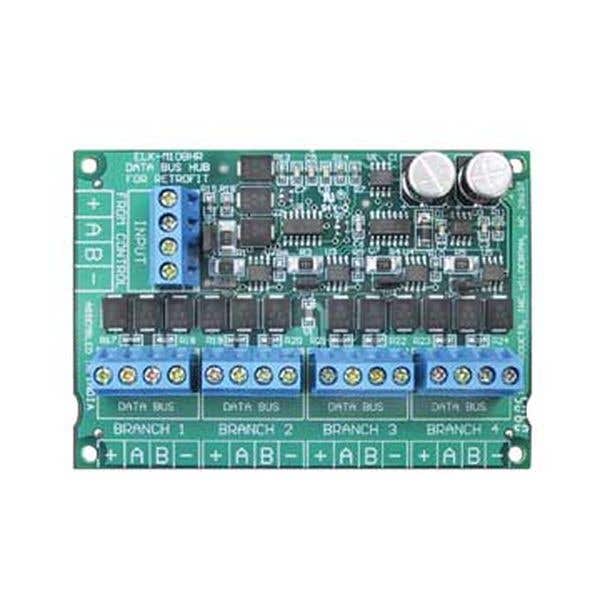

An "active" RS-485 data bus hub designed for jobs where an M1Gold or M1EZ8 Control is retrofitting an older panel that has multiple homerun 4 conductor keypad/data wires. It splits the main 485 data bus into 4 managed 485 branches. Each branch can have 2 parallel home run cables for a total of 8 home runs. The end of each cable is EOL terminated to insure proper operation and supervision.
In The Box:
- ELK-M1DBHR Data Bus Hub
- ELK-SWG Circuit Board Mounting Glides
- Instructions
- splits The Controls' Rs-485 Data Bus Output Into 4 Managed Branches
- Each Managed Branch Can Have 2 Parallel Home Run Cables (Total Of 8 Home Runs)
- EOL Termination Of Each Branch Insures Proper Operation And supervision
- Works With std. 4 Conductor Home Run Wire
- An Additional Unit May Be Connected In Parallel To The Control For Expanding Total Capacity
- Includes Mounting Rails for ELK-SWB Boxes
