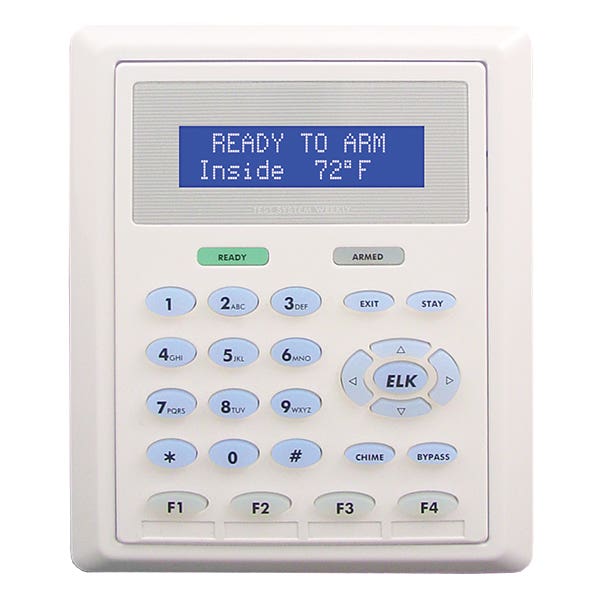

M1 LCD Low Profile Keypad
BRAND
Elk Products
SES #
ELK M1KP2
MFG #
M1KP2
UPC
762158550478
Your Price
Usually ships between 3-7 business days
LCD Keypad, 32 Char. Alpha, flush mount option, 4.658" W x 5.5" H
The ELK-M1KP2 is a low profile, addressable LCD Keypad for the M1 family of Cross Platform Controls. It features a 32 character blue/white backlighted display, blue lighted keys, 4 programmable function keys, along with the ELK menu navigation keys. It may also be recess 'flush' mounted using with a separately purchased back box kit (ELK-M1BBK2). The M1KP2 is compatible with "external" 26 bit Wiegand compatible proximity readers, allowing cards or fobs to be used for arming, disarming, or limited door strike control, etc.
In The Box:
- Low Profile LCD Keypad with Blue Display
- 1 each Multicolor Labels
- 4 #6 Flat Head Phillips Sheet Metal Screw
- 4 #4-20 Pan Head Phillips Plastite Screw
- 1 2200 Ohm Resistor
- 5 Gel Filled B-Connector
- 1 Mini Jumper
- 6-wire Flying Lead Cable Assembly
- Instructions
- Blue/white Backlighted Hi-Contrast LCD Display
- Four (4) Programmable Function Keys
- Unique Menu Navigation/Direction Keys
- Operates from the M1/EZ8 Rs-485 Data Bus
- Built-in Piezo sounder with adjustable pitch
- Accepts "External" 26 bit Wiegand Prox Reader (Optional)
- Input for 1 supervised Zone
- One Programmable "switched Positive" Voltage Output
- Exit, stay, Chime, and Bypass Keys
- surface mounts to a standard 1 or 2 gang electrical box
- Optional recess 'flush' mount kit available (ELK-M1BBK2)
