Amplified Two Way Listen-In Interface
BRAND
Elk Products
SES #
ELK M1TWA
MFG #
M1TWA
UPC
762158550652
Your Price
Usually ships between 3-7 business days

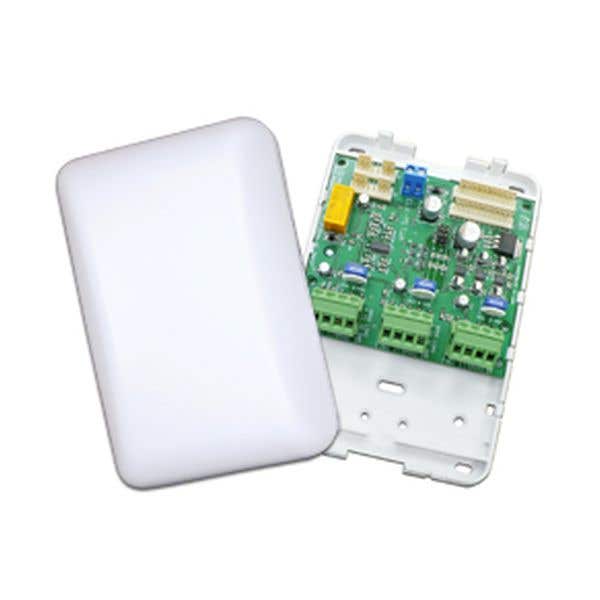

NEW! 2 Way Amplifier Bd, 3 Spkr & 3 Mic zones
Provides 3 zones of amplified speaker outputs with adjustable volume, along with 3 zones of microphone inputs. The M1TWA can be used to add two way listen-in to the M1 Control or to just add amplified speakers at keypads and other locations in a building. Each of the 3 amplified speaker zones can drive a maximum combined impedance range of 4 to 32 Ohms, permitting multiple speakers to be connected. Each zone includes a mute option that is triggered via an output from the control. The 3 microphone zones can handle up to 4 individual microphones each.
In The Box:
- Two-Way Listen-In/Amplifier Board
- Plastic Housing
- 4 #6 Plastic anchors
- 4 #6 Pan Head Sheet Metal Screws
- M1 to ANC Cable Assembly
- 12 Conductor Cable Assembly
- Instructions
- 3 Amplified speaker Zones
- Adjustable speaker Volume Control by Zone
- selectable Mute by Zone
- 3 Microphone Input Zones (up to 4 mics per zone)
- selectable Mic Listen by Zone or select ALL
- Interfaces to ELK-M1 or ELK-M1EZ8 Controls
