M1 Ethernet Interface
BRAND
Elk Products
SES #
ELK M1XEP
MFG #
M1XEP
UPC
762158550164
Your Price
Usually ships between 3-7 business days

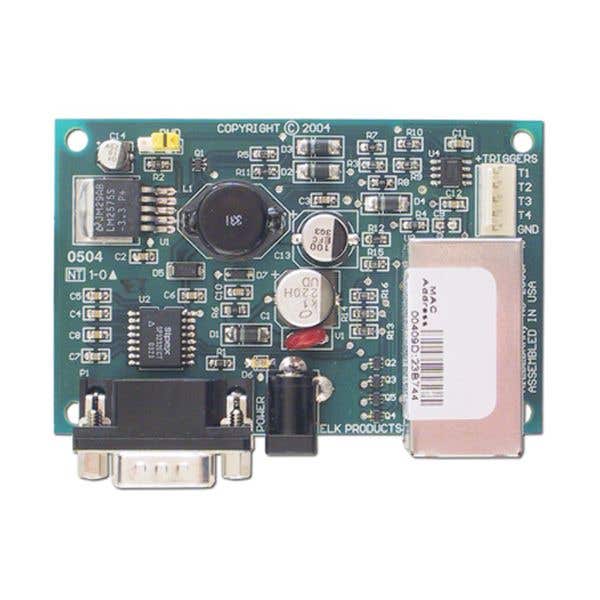

Ethernet Port Interface
The ELK-M1XEP is an Ethernet Appliance with a RS-232 serial Port Interface. It may be used to connect a control in the M1 Family to an Ethernet network. It features email event notification and FIPs compliant encryption algorithms for security sensitive environments. It is powered by an ELK-P1216 12 Volts DC, 1.5 Amp plug-in Power Supply/adapter. A software setup utility is built into ELKRP for configuring the connection setup, network password, etc. The M1 Ethernet Interface is factory defaulted to obtain a dynamic IP address from a DHCP server (i.e. router, cable modem, etc.). It may optionally be setup with a static IP address.
In The Box:
- M1 Ethernet Interface
- Plastic Housing
- 4 #6 Plastic Anchors
- 4 #6 Pan Head Sheet Metal Screws
- ELK-P1216 1.6A, 12Vdc Power Supply
- ELK-W040A DB9 Pin Serial Cable Assembly
- Instructions
- secure connection with password protection and ssL/TLs encryption
- Flash Memory for Firmware Updating
- Event notification via E-Mail (sMTP)
- supports automatic Dynamic DNs Updates with providers using the DynDNs protocol.
- supports Network Time Protocol for synchronizing the M1/EZ8's clock with an Internet time server.
- Internet Monitoring and Reporting Capability
- Network stack supporting the following protocols: TCP,UDP,DHCP,ssL/TLs, NTP, sMTP
- Federal Information Processing standards (FIPs) 128 bit encryption
- Integrated 802.3 compliant 10/100 Mbit network interface
- Rs232, DB9M 9-pin serial port connection
- Connects to the M1 RS-232 serial port (Port 0). The baud rate for this port must be set to 115,200 (factory default)
- RJ45 8-pin Network Jack
- 2.1mm barrel type power connector (center positive)
- LED Indicators for Power, Link, and Data
