Annunciator Relay
BRAND
Fire-Lite Alarms
MFG #
ANN-RLY
SES #
FL ANN-RLY
UPC
783008110444
Your Price
Usually ships between 3-7 business days

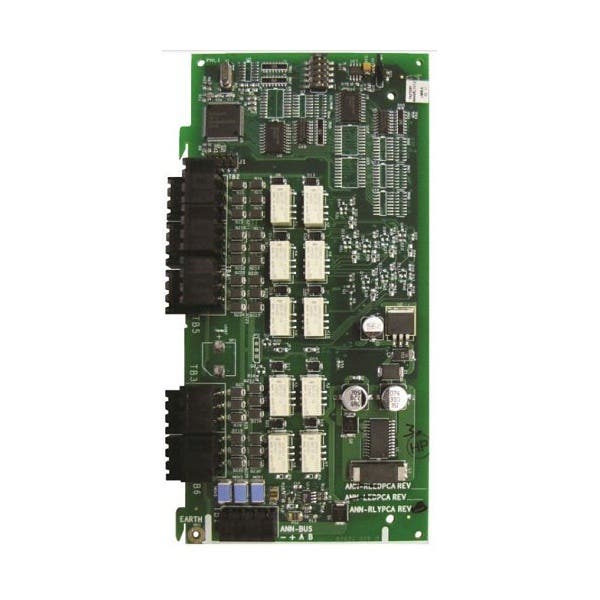

The ANN-RLY relay module provides 10 programmable Form- C relays when used with a compatible FACP (Fire Alarm Control Panel). The ANN-RLY module may be mounted inside the FACP main circuit board chassis, ROME or in the battery area of the enclosure using optional mounting bracket.
- ANN-RLY connects to the ANN-BUS terminal on the FACP and requires minimal programming
- Provides 10-programmable Form-C relays
- Ten Form-C relays can be programmed for various functions; Alarm, Trouble, Supervisory, AC Loss, Waterflow Delay, Input Zones and Silenceable Alarm
- Compatible with the MS9600LS, MS-9600UDLS, MS-9200UDLS, MS-9050UD, MS-5UD-3, MRP-2001, MRP-2002and MS-10UD-8
- May be powered by 24 VDC from the host FACP or by remote power supply
- Up to eight ANN-BUS devices may be connected to the ANN-BUS of each FACP
