80 CHAR LCD SERIAL ANNUNCIATOR, WHITE
BRAND
Fire-Lite Alarms
MFG #
ANN-80-W
SES #
FL ANN-80-W
UPC
783008110338
Your Price
Usually ships between 3-7 business days

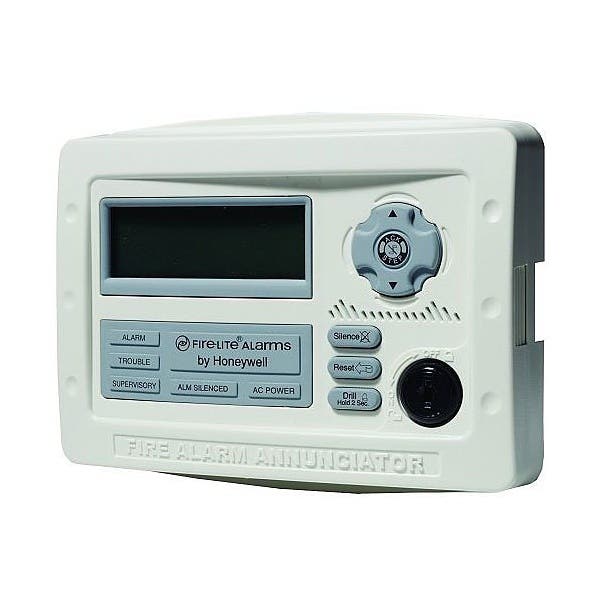

The ANN-80-W annunciator is a compact, backlit, 80-character LCD fire annunciator that mimics the Fire Alarm Control Panel (FACP) display. It provides system status indicators for AC Power, Alarm, Trouble, Supervisory, and Alarm Silenced conditions. The ANN-80 and the FACP communicate over a two-wire serial interface employing the ANN-BUS communication format. Connected devices are powered, via two additional wires, by either the host FACP or a remote UL-listed, filtered power supply.
- Backlit 80-character LCD (20 characters x 4 lines) mimics all display information from the host panel
- Control switches for system acknowledge, signal silence, drill, and reset
- Keyswitch enables/disables control switches, mechanically locks annunciator enclosure, and can be enabled or disabled at the FACP
- Enclosure supervised for tamper
- Local sounder can be enabled or disabled at the FACP
- Displays device type identifiers, individual point alarm, trouble, supervisory, zone, and custom alpha labels
- Surface mount directly to wall or to single, double, or 4"square electrical box
- Semi-flush mount to single, double, or 4" square electrical box
- Can be remotely located up to 6,000 feet (1,800 m) from the panel
- Backlight turns off during AC loss to conserve battery power but will turn back on if an alarm condition occurs.
