24VCLNG MNT STRB/HORN SEL. CNDL. RED
BRAND
Gentex Corporation
MFG #
GCC24CR
SES #
GEN GCC24CR
UPC
No UPC Set
Your Price
Usually ships between 3-7 business days

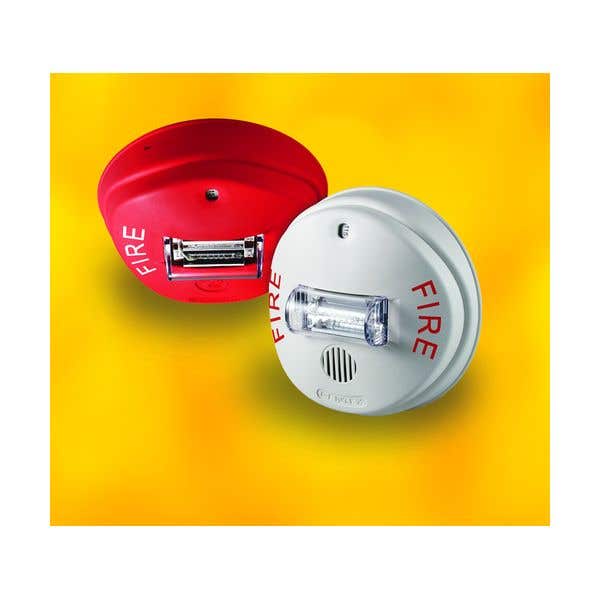

Horn/Strobe, Selectable Candela Strobe, Ceiling Mount, Red Faceplate
The GCS/GCC Series is a ceiling mount strobe (GCS) or combination horn/strobe (GCC) that offers dependable audible and visual alarms. The GCS/GCC offers field selectable candela options of 15, 30, 75, 95, 115 and 150 candela. Listed to ANSI/UL 464 and ANSI/UL 1971, CAN/ULC listed, applicable IBC/IFC/IRC Standards, FM, and NFPA 72.
- Lower installation and operating costs
- Nominal voltage 24VDC
- Features SuperSlide bracket - ease of supervision testing
- Features Checkmate - instant voltage verification
- Synchronize strobe and/or horn by using Gentex AVSM control module
- Prewire entire system, install mounting bracket, then install signals
- Input terminals 12 to 18 AWG
- Switch selection for high or low dBA
- Switch selection for 2400Hz or mechanical tone
- Switch selection for continuous or temporal 3 audible signal
- Tamperproof re-entrant grill
- Surface mount with the GCSB (Gentex Ceiling Surface Box)
- Silence audible while visual appliance will remain flashing
- Rugged die cast metal mounting bracket
- ALERT text available as an accessory
- Faceplate available in red or off-white
