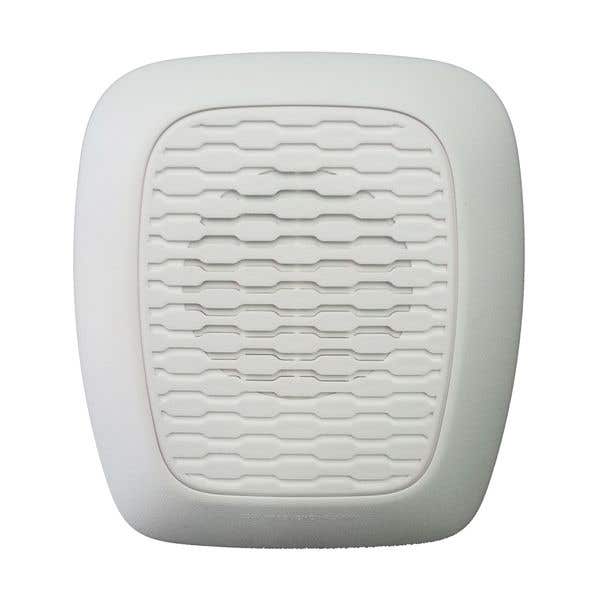

LOW FREQUENCY AUDIBLE SIGNAL WHITE 24VDC
Your Price
Usually ships between 3-7 business days
Low Frequency Horn, Temporal 3 Sounder, Temporal 4 Capabilities, PLAIN (no lettering), White Faceplate
The GHLF Series low frequency audible signal is a high-quality, low profile, audible appliance that offers a dependable 520 Hz square wave audible alarm with industry low current draw. The GHLF is ideal for any occupancy that requires low frequency notification appliances. The GHLF horn offers a temporal 3 tone with a jumper selection to choose between normal or loud decibel levels. A temporal 4 pattern is also available when used with the Gentex GTSM Synchronization Control Module. The GHLF is shipped with a die cast metal mounting bracket which incorporates the popular Super-Slide and Checkmate feature. The GHLF horn is listed to ANSI/UL 464 and CAN/ULC listed.
- Lower installation and operating costs
- Nominal voltage 24VDC
- Features SuperSlide bracket - ease of supervision testing
- Features Checkmate - instant voltage verification
- Synchronize horn with Gentex GTSM control module
- Prewire entire system, install mounting bracket, then instsall signals
- Input terminals 12 to 18 AWG
- Produces a 520Hz square wave, temporal 3 tone
- Jumper selection for normal or loud dBA
- Temporal 4 pattern available when used with Gentex GTSM control module
- Tamperproof re-entrant grill and locking screw
- Faceplate available in red or off-white
