12/24VDC MINIHORN WHITE SINGLE GANG CONTINUOUS/TEMPORAL3
BRAND
Gentex Corporation
SES #
GEN GX93W
MFG #
GX93-W
UPC
700217022856
Your Price
Usually ships between 3-7 business days

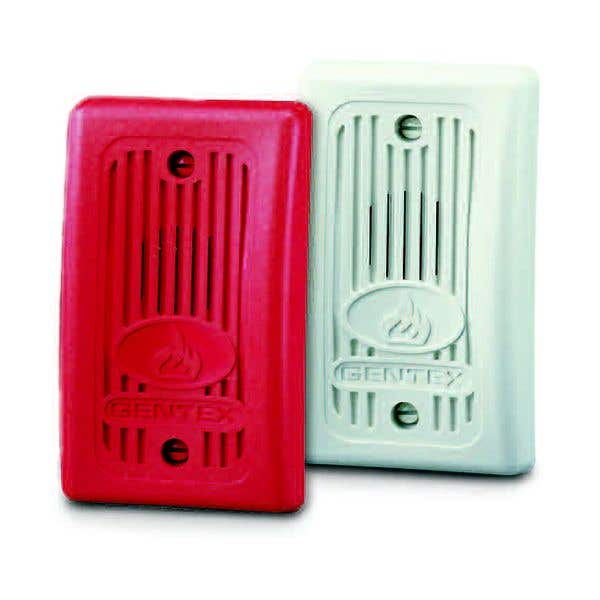

Mini-Horn, Continuous or Temporal 3 Sounder, White Faceplate
The GX93 Series mini-horn is a high quality remote audible signaling appliance that offers dependable remote annunciation. The GX93 is ideal for applications where a dependable audible alarm signal is required in applications such as hotels, dormitories and apartments. The GX93 is listed for use with both filtered and unfiltered power and a jumper is provided to select either temporal 3 or continuous tone.
The GX93 can be used on the same sync circuit as other Gentex signals. The GX93 Series is ANSI/UL 464 and CAN/ULC S525 listed for use with fire protective systems and are warranted for three years from the date of purchase.
- Single unit is capable of 12 VDC or 24 VDC determined by the input voltage
- Unit dimensions: 4.48" (11.38 cm) high x 2.84" (7.21 cm) wide x 0.5" (1.27 cm) deep
- Jumper selectable temporal 3 or continuous tone
- Horn frequency is 3100Hz
- Low current consumption
- Terminal blocks 12 AWG to 18 AWG
- Variety of mounting options for new construction and retrofit applications
- Synchronize with Gentex AVSM Series control module
- Faceplate available in red or off-white
