Four-Channel Ethernet over COA X with Pass-through PoE
BRAND
Hanwha
MFG #
TEC-F04
SES #
HAN TEC-F04
UPC
849688011881
Your Price
Usually ships between 3-7 business days

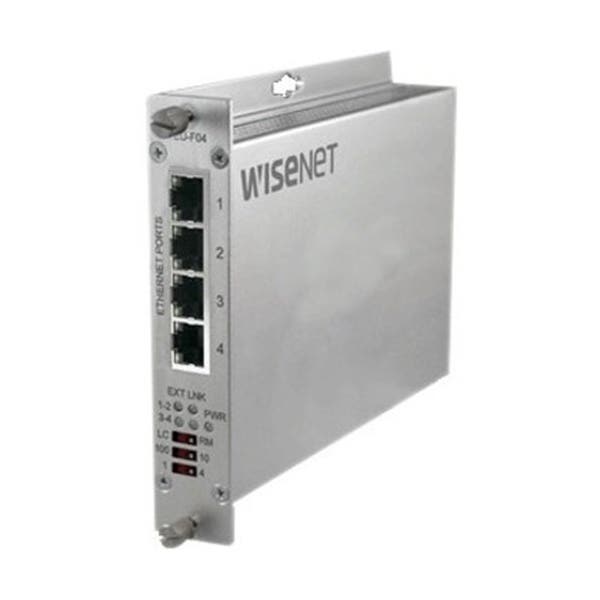

The TEC-F04 is a 4 channel Ethernet over Coax extender. The Ethernet over copper TEC-F04 supports 4 channels of 10/100Mbps Ethernet with Pass-through PoE over coaxial cable. This 4-channel unit may be powered by local power. These units provide the ultimate flexibility for extending a powered device (PD) over long distance copper. DIP switches are provided for user-selection of local or remote and 10/100Mbps setting. The TEC-F04 units are interchangeable between stand-alone or card mount configurations, or may be DIN-rail mounted by the addition of model SBP-UDR.
- Transmits individual Ethernet data channels with Pass-through PoE over standard Coaxial cable
- Extends Ethernet up to 5,000' (1,524 m) at 10 Mbps or 2,000' (610m) at 100 Mbps over Coaxial cable
- Extended temperature operation from -40°C to +75°C
- Extended Pass-through PoE meets the IEEE 802.3af standard for Power over Ethernet
- Full 10/100 Mbps Bandwidth
- Symmetric Bandwidth provides consistent upload and download with virtually zero packet loss over the total usable distance
- Perfect to retrofit existing analog CCTV installations to Ethernet-based systems
- Designed for CCTV systems for casinos, airports, school campuses, & more...
