18/2 OAS Stranded Jacketed - 500ft Pull Box - Gray
BRAND
Genesis Cable
MFG #
22145509
SES #
HCA 22145509
UPC
619172049061
Your Price
Usually ships between 3-7 business days

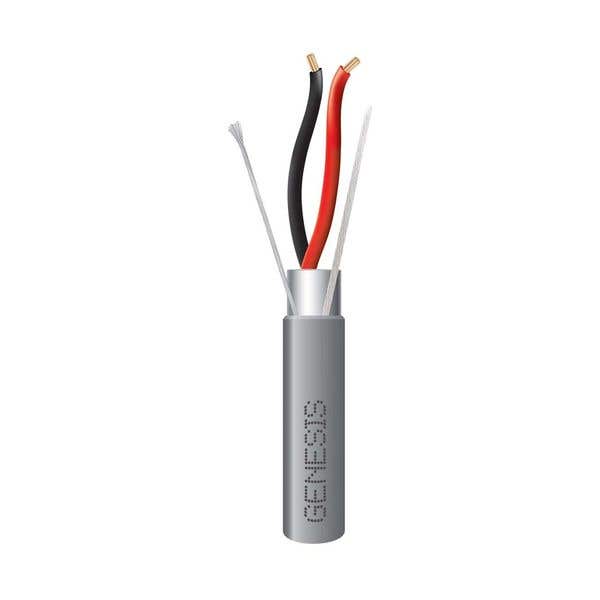

This Genesis® cable features 2 stranded 18 AWG copper conductors, an overall foil shield with a drain wire, and a riser rating. Choose this cable for a dependable connection for security, controls, audio, and other low-voltage applications.
Cable Rating
Riser, FT4
Cable Listing
CL3R, FPLR, CMR, FT4, Sunlight Resistant
Wire Gauge (AWG)
18
Solid or Stranded
Stranded
Number of Strands
19
Conductor Material
Bare Copper
Number of Conductors
2
Conductor Insulation Material
Polypropylene
Insulation Colors
Black, Red
Shielding
Yes
Shielding Type
Overall Foil
Rip Cord
Yes
Jacket Material
PVC
Nominal Outer Diameter
0.154 in.
Rated Voltage (Max)
300 Volts
DC Resistance (Max)
6.66 Ohms / 1000 ft. at 20 °C
Capacitance (Nominal)
42.9 pF / ft.
Impedance (Nominal)
36 Ohms
Velocity of Propagation
0.67
Temperature Rating (Max)
75 °C
Temperature Rating (Min)
-20 °C
Length Per Unit
500 ft.
Package Quantity
1
Cable Packaging
Pull Box
Package Length
10.5 in
Package Width
7.75 in
Package Height
10.5 in
Product Weight
9.3
