18/2 Stranded Jacketed Plenum Natural 500' Box
BRAND
Genesis Cable
SES #
HCA 31145512
MFG #
31145512
UPC
619172013789
Your Price
Usually ships between 3-7 business days

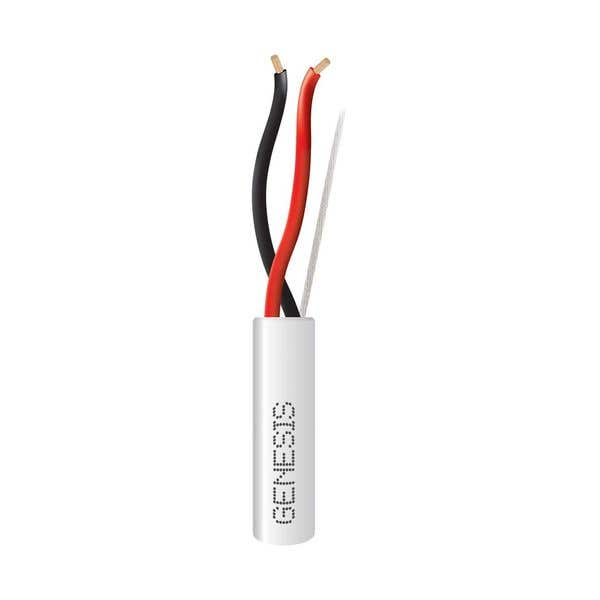

This Genesis® cable features 2 stranded 18 AWG copper conductors and a plenum rating. Choose this cable for a dependable connection for security, controls, audio, and other low-voltage applications.
Cable Rating
Plenum, FT6
Cable Listing
CL3P, FPLP, CMP, FT6
Wire Gauge (AWG)
18
Solid or Stranded
Stranded
Number of Strands
19
Conductor Material
Bare Copper
Number of Conductors
2
Conductor Insulation Material
Plenum PVC
Insulation Colors
Black, Red
Shielding
No
Rip Cord
Yes
Jacket Material
Plenum PVC
Nominal Outer Diameter
0.148 in.
Rated Voltage (Max)
300 Volts
DC Resistance (Max)
6.66 Ohms / 1000 ft. at 20 °C
Capacitance (Nominal)
32.2 pF / ft.
Impedance (Nominal)
58 Ohms
Velocity of Propagation
0.55
Temperature Rating (Max)
75 °C
Temperature Rating (Min)
-20 °C
Product Length
500 ft
Length Per Unit
500 ft.
Package Quantity
1
Cable Packaging
Pull Box
Package Length
10.5 in
Package Width
7.75 in
Package Height
10.5 in
Product Weight
7.9 lb
