16/2 Stranded Jacketed Plenum - 1000ft Pull Box - Natural
BRAND
Genesis Cable
MFG #
31211112
SES #
HCA 31211112
UPC
619172014908
Your Price
Usually ships between 3-7 business days

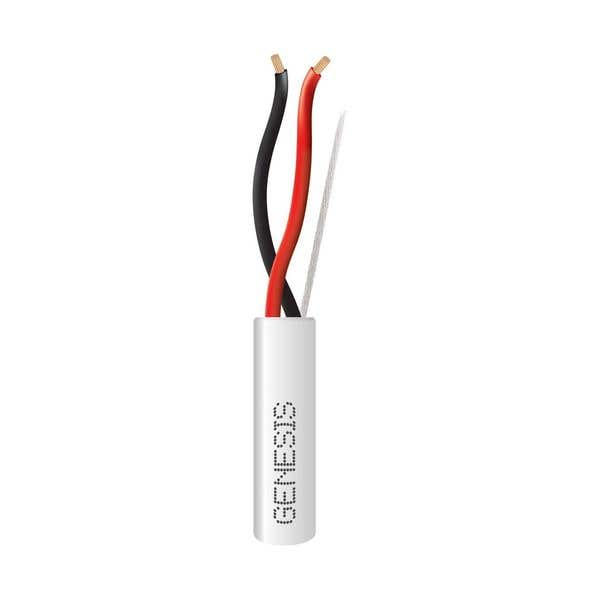

This Genesis® cable features 2 stranded 16 AWG copper conductors and a plenum rating. Choose this cable for a dependable connection for security, controls, audio, and other low-voltage applications.
Cable Rating
Plenum, FT6
Cable Listing
CL3P, FPLP, CMP, FT6
Wire Gauge (AWG)
16
Solid or Stranded
Stranded
Number of Strands
26
Conductor Material
Bare Copper
Number of Conductors
2
Conductor Insulation Material
Plenum PVC
Insulation Colors
Black, Red
Shielding
No
Rip Cord
Yes
Jacket Material
Plenum PVC
Nominal Outer Diameter
0.180 in.
Rated Voltage (Max)
300 Volts
DC Resistance (Max)
4.19 Ohms / 1000 ft. at 20 °C
Capacitance (Nominal)
34.6 pF / ft.
Impedance (Nominal)
54 Ohms
Velocity of Propagation
0.55
Temperature Rating (Max)
75 °C
Temperature Rating (Min)
-20 °C
Product Length
1000 ft
Length Per Unit
1000 ft.
Package Quantity
1
Cable Packaging
Pull Box
Package Length
13 in
Package Width
7.75 in
Package Height
13 in
Product Weight
25.3 lb
