16/2 Solid Fire Cable - 500ft Pull Box - Red
BRAND
Genesis Cable
MFG #
43115504
SES #
HCA 43115504
UPC
619172027472
Your Price
Usually ships between 3-7 business days

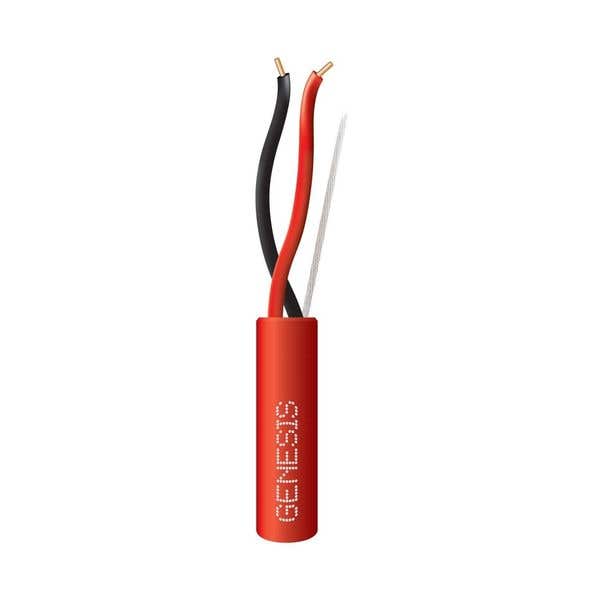

This Genesis® cable features 2 solid 16 AWG copper conductors and a riser rating. Choose this cable for a dependable fire alarm system wiring solution.
Cable Rating
Riser
Cable Listing
FPLR, CL3R, FT4, Sunlight Resistant
Wire Gauge (AWG)
16
Solid or Stranded
Solid
Number of Strands
1
Conductor Material
Bare Copper
Number of Conductors
2
Conductor Insulation Material
Polypropylene
Insulation Colors
Black, Red
Shielding
No
Rip Cord
Yes
Jacket Material
PVC
Nominal Outer Diameter
0.165 in.
Rated Voltage (Max)
300 Volts
DC Resistance (Max)
4.1 Ohms / 1000 ft. at 20 °C
Capacitance (Nominal)
22.3 pF / ft.
Impedance (Nominal)
68 Ohms
Velocity of Propagation
0.67
Temperature Rating (Max)
75 °C
Temperature Rating (Min)
-20 °C
Product Length
500 ft
Length Per Unit
500 ft.
Package Quantity
1
Cable Packaging
Pull Box
Package Length
10.5 in
Package Width
7.75 in
Package Height
10.5 in
Product Weight
11.2 lb
